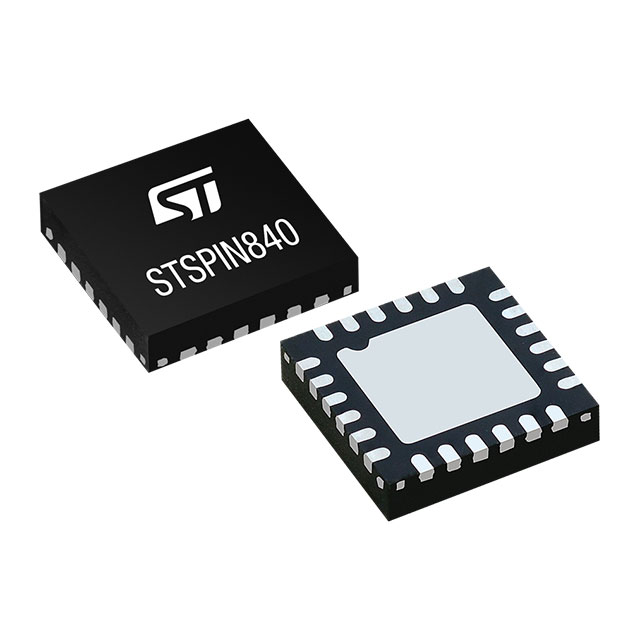

STSPIN840

STMicroelectronics

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STSPIN840
Manufacturer/Brand:	STMicroelectronics
Product description	COMPACT DUAL BRUSHED DC MOTOR DR
Datasheets:	STSPIN840.pdf
Stock Condition	28004 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 28004 pcs

Reference Price (In US Dollars)

1 pcs: $1.105

10 pcs: $0.992

100 pcs: $0.813

500 pcs: $0.692

1000 pcs: $0.583

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.105

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STSPIN840

Part Number	STSPIN840	Manufacturer	STMicroelectronics
Description	COMPACT DUAL BRUSHED DC MOTOR DR	Lead Free Status / RoHS Status
Quantity Available	28004 pcs	Data sheet	STSPIN840.pdf
Voltage - Supply	7 V ~ 45 V	Voltage - Load	48V (Max)
Technology	Power MOSFET	Supplier Device Package	24-TQFPN (4x4)
Step Resolution	-	Series	-
Packaging	Cut Tape (CT)	Package / Case	24-TFQFN Exposed Pad
Output Configuration	Half Bridge (4)	Other Names	497-18119-1
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Interface	Logic
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Power MOSFET Logic 24-TQFPN (4x4)
Current - Output	1.5A	Applications	Industrial
