STMicroelectronics
| Part Number | STLD200N4F6AG | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 40V 120A POWERFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74939 pcs | Data sheet | STLD200N4F6AG.pdf |
| Vgs(th) (Max) @ Id | 4V @ 1mA | Vgs (Max) | ±20V |

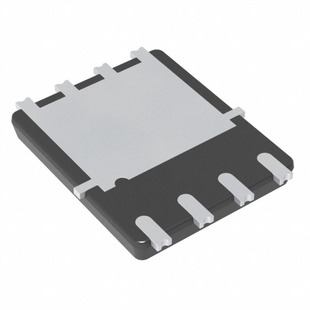

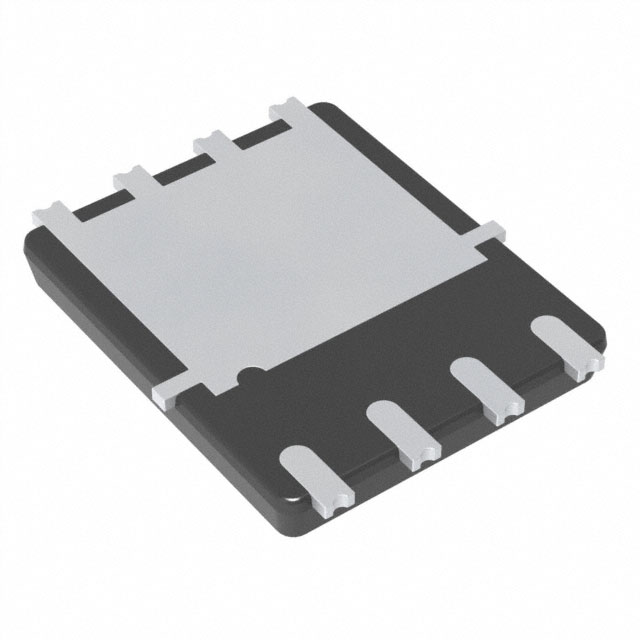

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | PowerFlat™ (5x6) Dual Side |
| Series | Automotive, AEC-Q101, STripFET™ F6 | Rds On (Max) @ Id, Vgs | 1.5 mOhm @ 75A, 10V |
| Power Dissipation (Max) | 158W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN | Other Names | 497-17148-2 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 38 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 10700pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 172nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6.5V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 120A (Tc) 158W (Tc) Surface Mount PowerFlat™ (5x6) Dual Side |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
