STMicroelectronics
| Part Number | STL86N3LLH6AG | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 30V 80A PWRFLAT56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123055 pcs | Data sheet | STL86N3LLH6AG.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Vgs (Max) | ±20V |

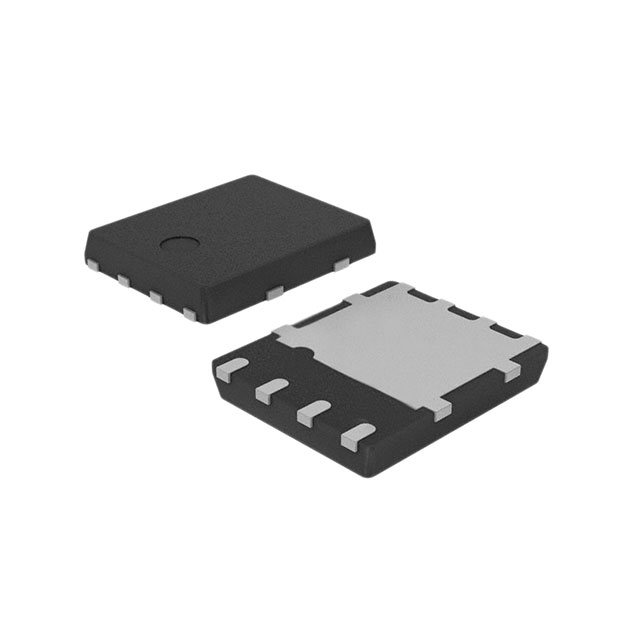

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | PowerFlat™ (5x6) |
| Series | Automotive, AEC-Q101, STripFET™ H6 | Rds On (Max) @ Id, Vgs | 5.2 mOhm @ 10.5A, 10V |
| Power Dissipation (Max) | 4W (Ta), 60W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN | Other Names | 497-16043-2 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 38 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2030pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 80A (Tc) 4W (Ta), 60W (Tc) Surface Mount PowerFlat™ (5x6) |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
