STL7N60M2

STMicroelectronics

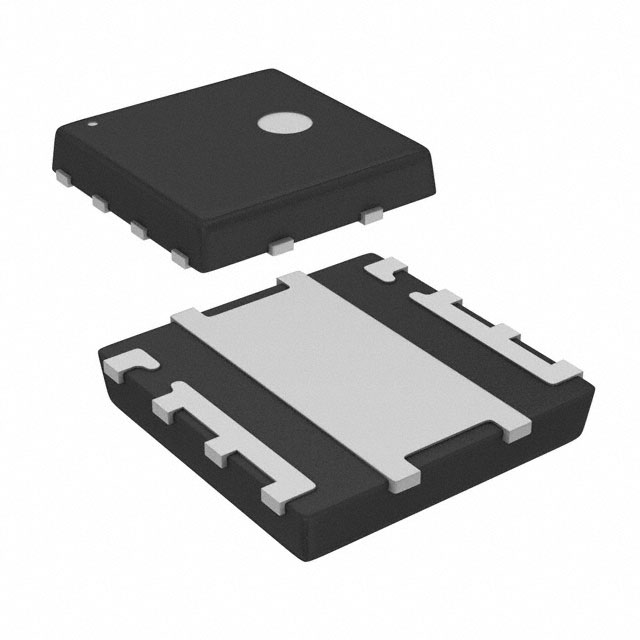

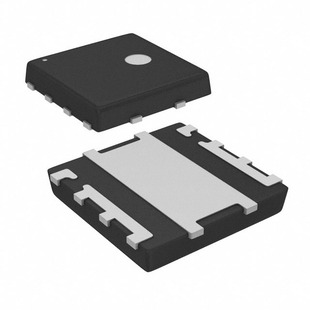

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STL7N60M2
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 600V 5A POWERFLAT
Datasheets:	STL7N60M2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	147745 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 147745 pcs

Reference Price (In US Dollars)

3000 pcs: $0.255

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.255

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STL7N60M2

Part Number	STL7N60M2	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 600V 5A POWERFLAT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	147745 pcs	Data sheet	STL7N60M2.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Vgs (Max)	±25V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerFLAT™ (5x5)
Series	MDmesh™	Rds On (Max) @ Id, Vgs	1.05 Ohm @ 2A, 10V
Power Dissipation (Max)	4W (Ta), 67W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	497-16519-2 STL7N60M2-ND
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	42 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	271pF @ 100V
Gate Charge (Qg) (Max) @ Vgs	8.8nC @ 10V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	10V
Drain to Source Voltage (Vdss)	600V	Detailed Description	N-Channel 600V 5A (Tc) 4W (Ta), 67W (Tc) Surface Mount PowerFLAT™ (5x5)
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
