STK22N6F3

STMicroelectronics

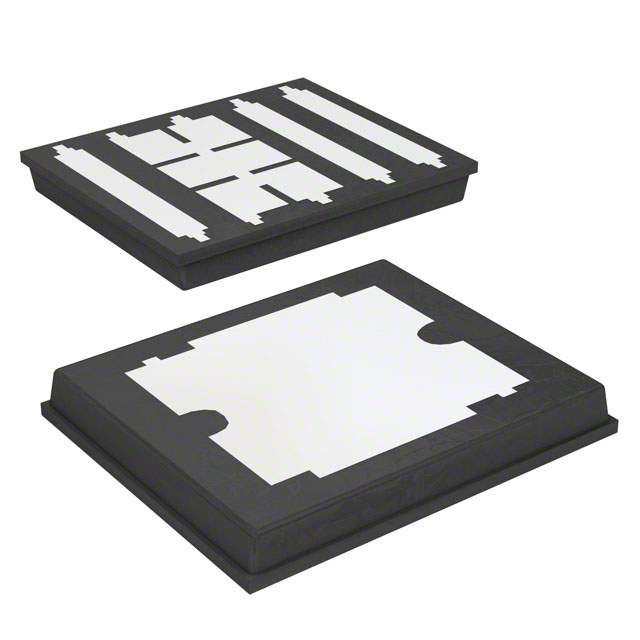

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STK22N6F3
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 60V 22A POLARPAK
Datasheets:	STK22N6F3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16133 pcs

Reference Price (In US Dollars)

1 pcs: $1.904

10 pcs: $1.701

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.904

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STK22N6F3

Part Number	STK22N6F3	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 60V 22A POLARPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16133 pcs	Data sheet	STK22N6F3.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PolarPak®
Series	STripFET™	Rds On (Max) @ Id, Vgs	6 mOhm @ 11A, 10V
Power Dissipation (Max)	5.2W (Tc)	Packaging	Cut Tape (CT)
Package / Case	PolarPak®	Other Names	497-10009-1
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2500pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	41nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	60V
Detailed Description	N-Channel 60V 22A (Tc) 5.2W (Tc) Surface Mount PolarPak®	Current - Continuous Drain (Id) @ 25°C	22A (Tc)
