STGP6M65DF2

STMicroelectronics

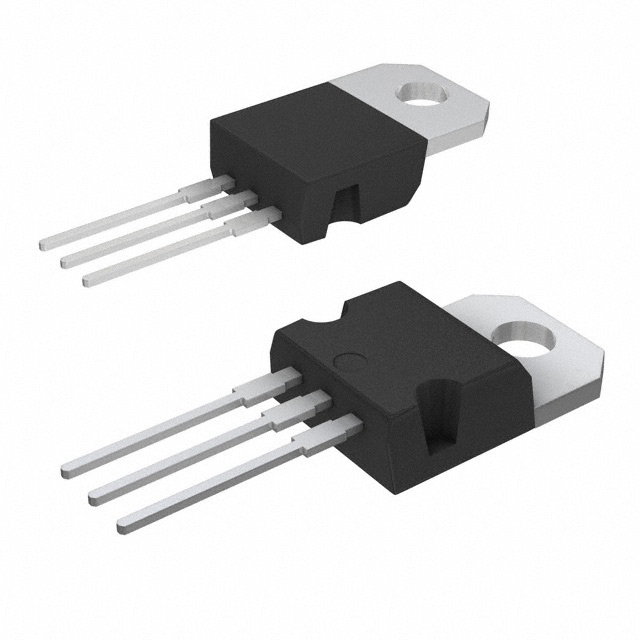

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STGP6M65DF2
Manufacturer/Brand:	STMicroelectronics
Product description	TRENCH GATE FIELD-STOP IGBT M SE
Datasheets:	STGP6M65DF2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75075 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 75075 pcs

Reference Price (In US Dollars)

1 pcs: $0.426

10 pcs: $0.38

100 pcs: $0.297

500 pcs: $0.245

1000 pcs: $0.193

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.426

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STGP6M65DF2

Part Number	STGP6M65DF2	Manufacturer	STMicroelectronics
Description	TRENCH GATE FIELD-STOP IGBT M SE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75075 pcs	Data sheet	STGP6M65DF2.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2V @ 15V, 6A
Test Condition	400V, 6A, 22 Ohm, 15V	Td (on/off) @ 25°C	12ns/86ns
Switching Energy	40µJ (on), 136µJ (off)	Supplier Device Package	TO-220
Series	M	Reverse Recovery Time (trr)	140ns
Power - Max	88W	Packaging	Tube
Package / Case	TO-220-3	Other Names	497-16967
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	42 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Trench Field Stop	Gate Charge	21.2nC
Detailed Description	IGBT Trench Field Stop 650V 12A 88W Through Hole TO-220	Current - Collector Pulsed (Icm)	24A
Current - Collector (Ic) (Max)	12A
