STG3692QTR

STMicroelectronics

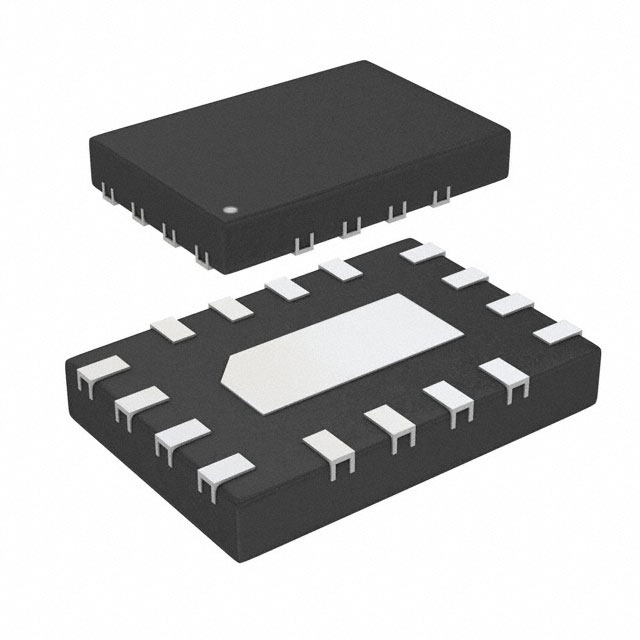

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STG3692QTR
Manufacturer/Brand:	STMicroelectronics
Product description	IC SWITCH QUAD SPDT 16QFN
Datasheets:	STG3692QTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	239332 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 239332 pcs

Reference Price (In US Dollars)

3000 pcs: $0.155

6000 pcs: $0.147

15000 pcs: $0.141

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.155

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STG3692QTR

Part Number	STG3692QTR	Manufacturer	STMicroelectronics
Description	IC SWITCH QUAD SPDT 16QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	239332 pcs	Data sheet	STG3692QTR.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 4.3 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 13ns	Switch Circuit	SPDT
Supplier Device Package	16-QFN (2.6x1.8)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	16-UFQFN Exposed Pad
Other Names	497-7983-2 STG3692QTR-ND	Operating Temperature	-55°C ~ 125°C (TA)
On-State Resistance (Max)	5.2 Ohm	Number of Circuits	4
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	38 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	4 Circuit IC Switch 2:1 5.2 Ohm 16-QFN (2.6x1.8)	Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-78dB @ 1MHz	Charge Injection	5pC
Channel-to-Channel Matching (ΔRon)	300 mOhm	Channel Capacitance (CS(off), CD(off))	5pF
Base Part Number	STG3692	-3db Bandwidth	800MHz
