STG3155DTR

STMicroelectronics

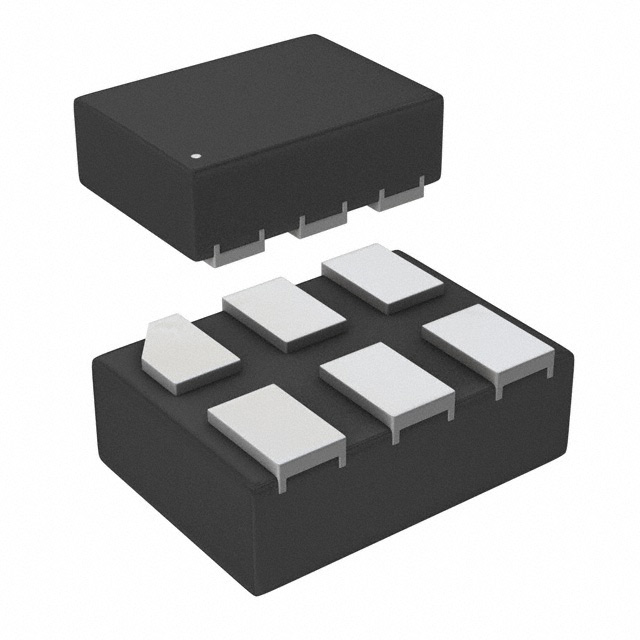

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STG3155DTR
Manufacturer/Brand:	STMicroelectronics
Product description	IC SWITCH SPDT 6DFN
Datasheets:	STG3155DTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	101862 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 101862 pcs

Reference Price (In US Dollars)

1 pcs: $0.307

10 pcs: $0.275

100 pcs: $0.214

500 pcs: $0.177

1000 pcs: $0.14

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.307

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STG3155DTR

Part Number	STG3155DTR	Manufacturer	STMicroelectronics
Description	IC SWITCH SPDT 6DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101862 pcs	Data sheet	STG3155DTR.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 4.3 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	55ns, 30ns	Switch Circuit	SPDT
Supplier Device Package	6-DFN (1.45x1.0)	Series	-
Packaging	Cut Tape (CT)	Package / Case	6-UFDFN
Other Names	497-6175-1	Operating Temperature	-55°C ~ 125°C (TA)
On-State Resistance (Max)	600 mOhm	Number of Circuits	1
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	1 Circuit IC Switch 2:1 600 mOhm 6-DFN (1.45x1.0)
Current - Leakage (IS(off)) (Max)	20nA	Crosstalk	-72dB @ 100kHz
Charge Injection	53pC	Channel-to-Channel Matching (ΔRon)	21 mOhm
Channel Capacitance (CS(off), CD(off))	6.6pF	Base Part Number	STG3155
-3db Bandwidth	70MHz
