STMicroelectronics

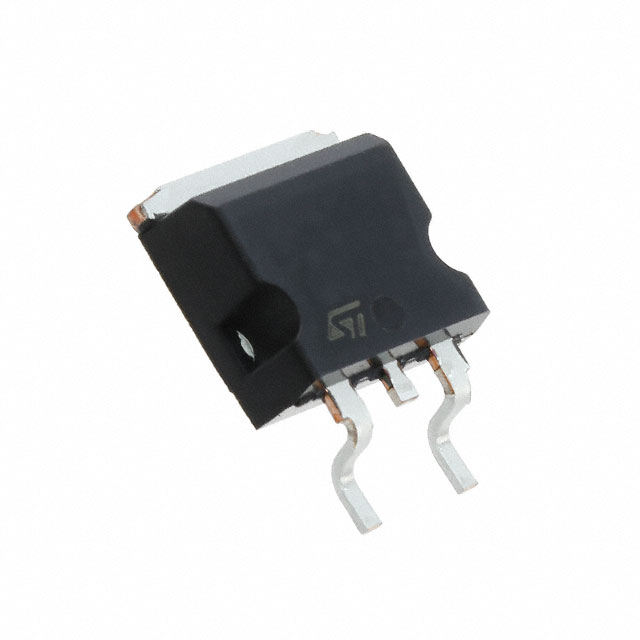

| Part Number | STB10N60M2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 600V 7.5A D2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80205 pcs | Data sheet | STB10N60M2.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | D2PAK |
| Series | MDmesh™ II Plus | Rds On (Max) @ Id, Vgs | 600 mOhm @ 3A, 10V |
| Power Dissipation (Max) | 85W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Other Names | 497-14528-2 STB10N60M2-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 42 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 400pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 13.5nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 7.5A (Tc) 85W (Tc) Surface Mount D2PAK |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Tc) | Base Part Number | STB10N60 |
