BAT20JFILM

STMicroelectronics

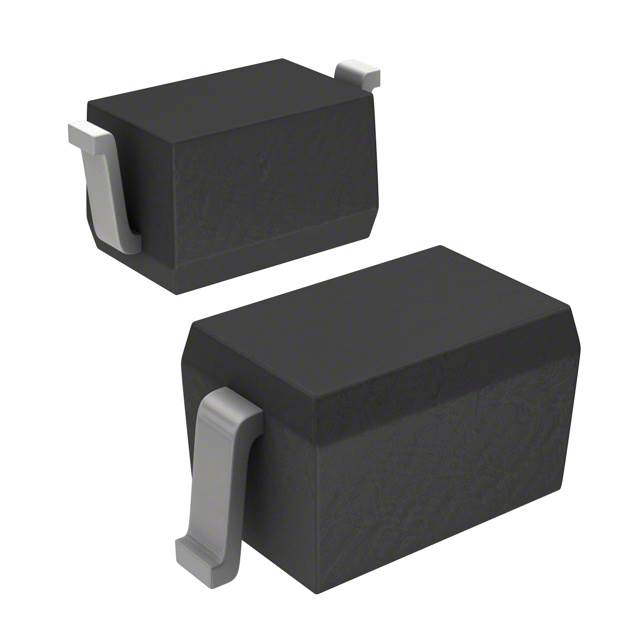

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BAT20JFILM
Manufacturer/Brand:	STMicroelectronics
Product description	DIODE SCHOTTKY 23V 1A SOD323
Datasheets:	BAT20JFILM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	215130 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 215130 pcs

Reference Price (In US Dollars)

1 pcs: $0.144

10 pcs: $0.117

100 pcs: $0.08

500 pcs: $0.06

1000 pcs: $0.045

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.144

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BAT20JFILM

Part Number	BAT20JFILM	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 23V 1A SOD323	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	215130 pcs	Data sheet	BAT20JFILM.pdf
Voltage - Forward (Vf) (Max) @ If	620mV @ 1A	Voltage - DC Reverse (Vr) (Max)	23V
Supplier Device Package	SOD-323	Speed	Fast Recovery = 200mA (Io)
Series	-	Packaging	Cut Tape (CT)
Package / Case	SC-76, SOD-323	Other Names	497-3381-1
Operating Temperature - Junction	150°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 23V 1A Surface Mount SOD-323	Current - Reverse Leakage @ Vr	12µA @ 15V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	30pF @ 5V, 1MHz
Base Part Number	BAT20J
