Rosenberger
| Part Number | 71K504-200N5 | Manufacturer | Rosenberger |
|---|---|---|---|
| Description | CONN BNC JACK STR 75OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10600 pcs | Data sheet | 71K504-200N5.pdf |
| Voltage Rating | 400V | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 139829 1868-1467 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | Extended Insulation |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |

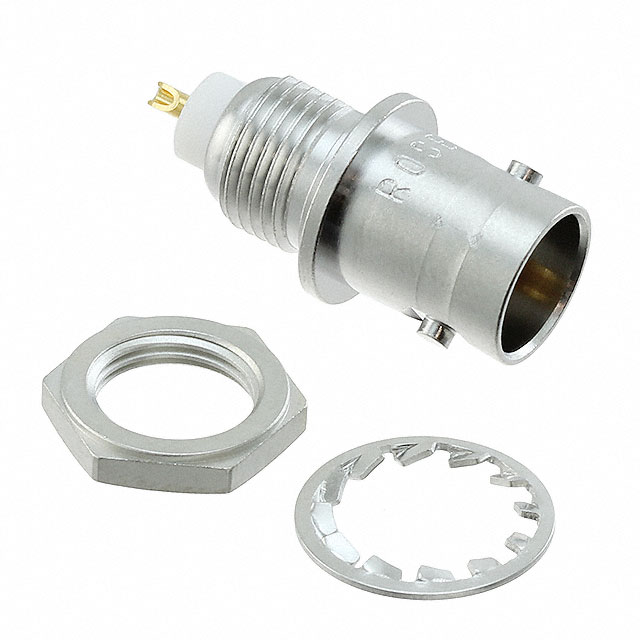

| Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount Solder Cup | Contact Termination | Solder Cup |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | White Bronze |
