Rosenberger
| Part Number | 56K607-802N5 | Manufacturer | Rosenberger |
|---|---|---|---|
| Description | CONN TNC JACK STR 50OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6637 pcs | Data sheet | 56K607-802N5.pdf |
| Voltage Rating | 500V | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 106769 1868-1387 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 10GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |

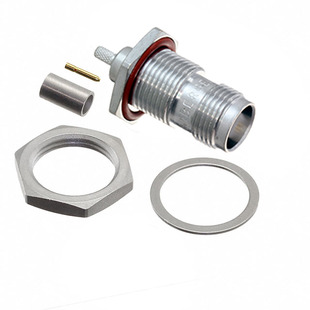

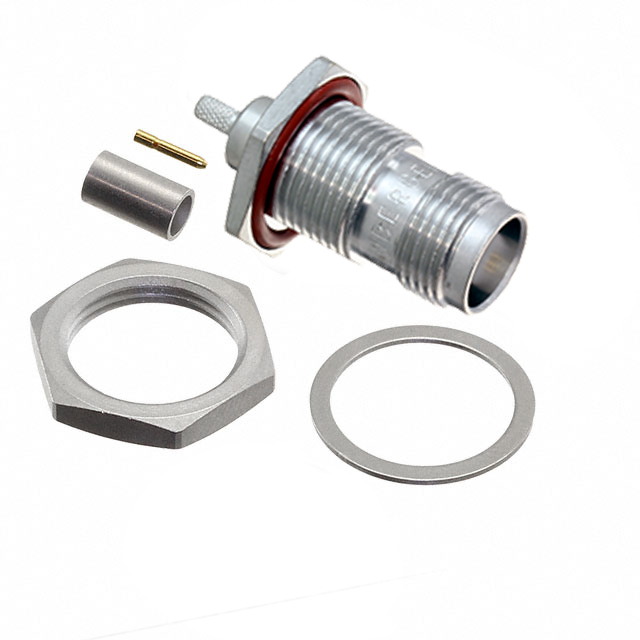

| Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount Crimp | Contact Termination | Crimp |
| Connector Type | Jack, Female Socket | Connector Style | TNC |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-174A, 188A, 316 | Body Material | Brass |
| Body Finish | White Bronze |
