RJK0391DPA-00#J5A

Renesas Electronics America

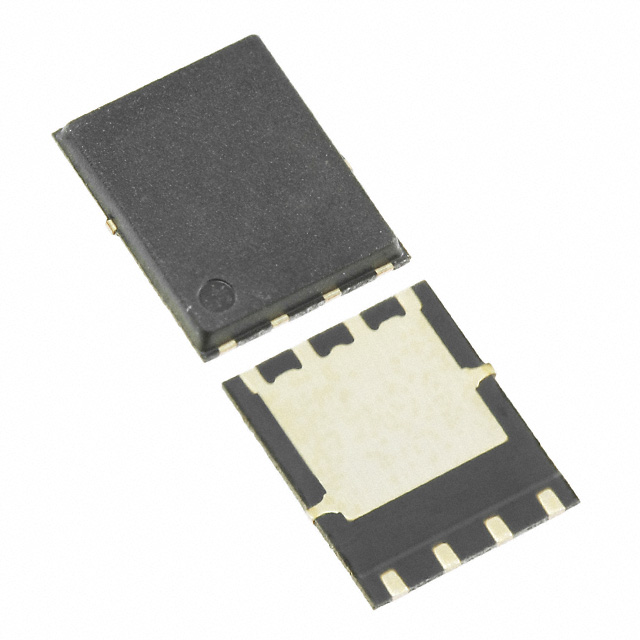

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RJK0391DPA-00#J5A
Manufacturer/Brand:	Renesas Electronics America
Product description	MOSFET N-CH 30V 50A 8WPAK
Datasheets:	RJK0391DPA-00#J5A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	52224 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 52224 pcs

Reference Price (In US Dollars)

1 pcs: $0.741

10 pcs: $0.669

100 pcs: $0.537

500 pcs: $0.418

1000 pcs: $0.346

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.741

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RJK0391DPA-00#J5A

Part Number	RJK0391DPA-00#J5A	Manufacturer	Renesas Electronics America
Description	MOSFET N-CH 30V 50A 8WPAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	52224 pcs	Data sheet	RJK0391DPA-00#J5A.pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	8-WPAK (3)
Series	-	Rds On (Max) @ Id, Vgs	2.9 mOhm @ 25A, 10V
Power Dissipation (Max)	50W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerWDFN	Other Names	RJK0391DPA-00#J5ACT
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	5600pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	34nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 50A (Ta) 50W (Tc) Surface Mount 8-WPAK (3)	Current - Continuous Drain (Id) @ 25°C	50A (Ta)
