RJH60T04DPQ-A1#T0

Renesas Electronics America

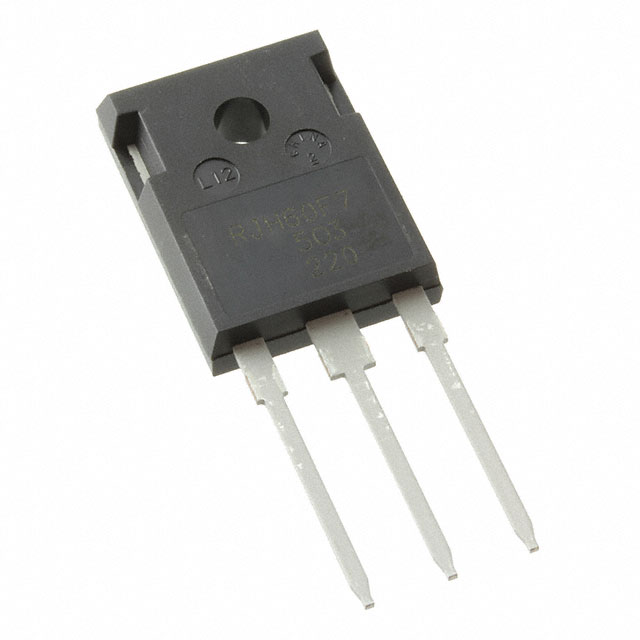

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RJH60T04DPQ-A1#T0
Manufacturer/Brand:	Renesas Electronics America
Product description	IGBT TRENCH 600V 60A TO247A
Datasheets:	RJH60T04DPQ-A1#T0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3914 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RJH60T04DPQ-A1#T0

Part Number	RJH60T04DPQ-A1#T0	Manufacturer	Renesas Electronics America
Description	IGBT TRENCH 600V 60A TO247A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3914 pcs	Data sheet	RJH60T04DPQ-A1#T0.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 30A
Test Condition	400V, 30A, 10 Ohm, 15V	Td (on/off) @ 25°C	54ns/136ns
Switching Energy	-	Supplier Device Package	TO-247A
Series	-	Reverse Recovery Time (trr)	100ns
Power - Max	208.3W	Packaging	Tube
Package / Case	TO-247-3	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench
Gate Charge	87nC	Detailed Description	IGBT Trench 600V 60A 208.3W Through Hole TO-247A
Current - Collector (Ic) (Max)	60A
