RJH60D7DPM-00#T1

Renesas Electronics America

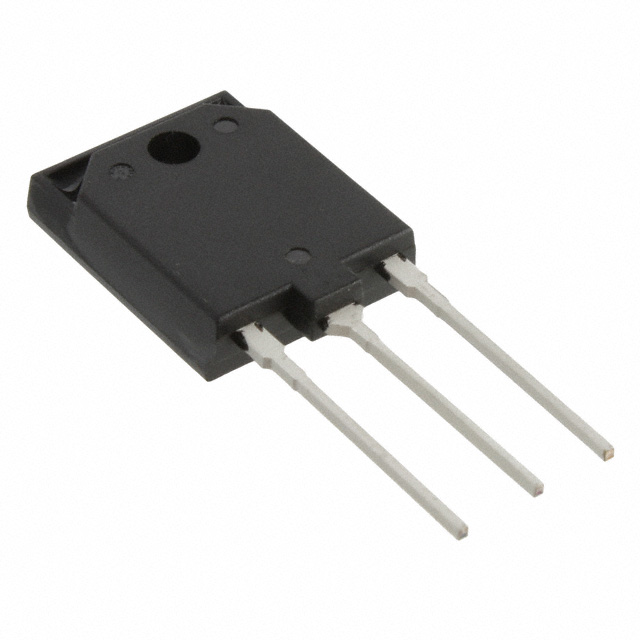

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RJH60D7DPM-00#T1
Manufacturer/Brand:	Renesas Electronics America
Product description	IGBT 600V 90A 55W TO3PFM
Datasheets:	RJH60D7DPM-00#T1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3177 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3177 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RJH60D7DPM-00#T1

Part Number	RJH60D7DPM-00#T1	Manufacturer	Renesas Electronics America
Description	IGBT 600V 90A 55W TO3PFM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3177 pcs	Data sheet	RJH60D7DPM-00#T1.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 50A
Test Condition	300V, 50A, 5 Ohm, 15V	Td (on/off) @ 25°C	60ns/190ns
Switching Energy	1.1mJ (on), 600µJ (off)	Supplier Device Package	TO-3PFM
Series	-	Reverse Recovery Time (trr)	100ns
Power - Max	55W	Packaging	Tube
Package / Case	TO-3PFM, SC-93-3	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Standard
IGBT Type	Trench	Gate Charge	130nC
Detailed Description	IGBT Trench 600V 90A 55W Through Hole TO-3PFM	Current - Collector (Ic) (Max)	90A
Base Part Number	RJH60D
