RECOM Power

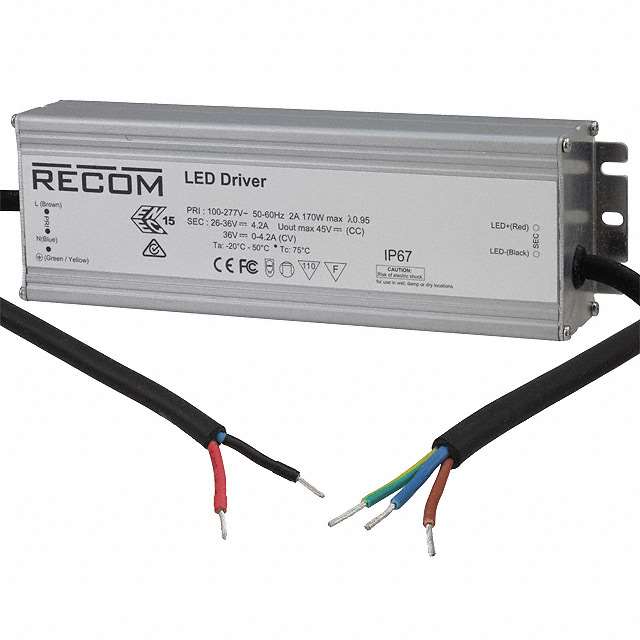

| Part Number | RACD150-36-ENEC | Manufacturer | RECOM Power |
|---|---|---|---|
| Description | LED DVR CC/CV AC/DC 26-36V 4.2A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6916 pcs | Data sheet | RACD150-36-ENEC.pdf |
| Weight | 2.4 lbs (1.1kg) | Voltage - Output | 26 ~ 36 V |
| Voltage - Isolation | 3.75kV | Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC | Type | Constant Current, Voltage |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 8.74" L x 2.68" W x 1.54" H (222.0mm x 68.0mm x 39.0mm) | Series | LIGHTLINE RACD150-ENEC |
| Ratings | IP67 | Power (Watts) | 150W |
| Other Names | 22000049 945-2151 RACD150-36-ENEC-ND |
Operating Temperature | -30°C ~ 70°C |
| Number of Outputs | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, OTP, OVP, SCP | Efficiency | 90% |
| Dimming | - | Detailed Description | 4.2A 26 ~ 36 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output |
| Current - Output (Max) | 4.2A | Approvals | CE, ENEC |
