3.14200.0220000

RAFI

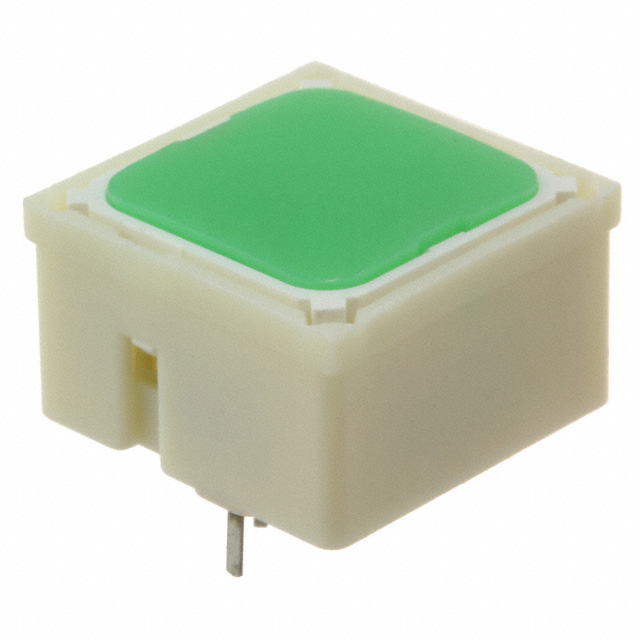

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3.14200.0220000
Manufacturer/Brand:	RAFI
Product description	SWITCH TACTILE SPST-NO 0.25A 50V
Datasheets:	3.14200.0220000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8843 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8843 pcs

Reference Price (In US Dollars)

1 pcs: $4.057

10 pcs: $3.947

32 pcs: $3.837

64 pcs: $3.508

128 pcs: $3.07

256 pcs: $2.96

512 pcs: $2.905

1024 pcs: $2.851

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.057

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3.14200.0220000

Part Number	3.14200.0220000	Manufacturer	RAFI
Description	SWITCH TACTILE SPST-NO 0.25A 50V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8843 pcs	Data sheet	3.14200.0220000.pdf
Termination Style	PC Pin	Switch Travel	0.50mm
Switch Function	Off-Mom	Series	RF15
Packaging	Tube	Outline	15.00mm x 15.00mm
Other Names	1715-1425 1715-1425-2 1715-1425-2-ND 3.14.200.022/0000 3142000220000	Operating Temperature	-25°C ~ 70°C
Operating Force	296gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	LED, Green	Illumination	Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.25A @ 35VAC/DC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	9.70mm
