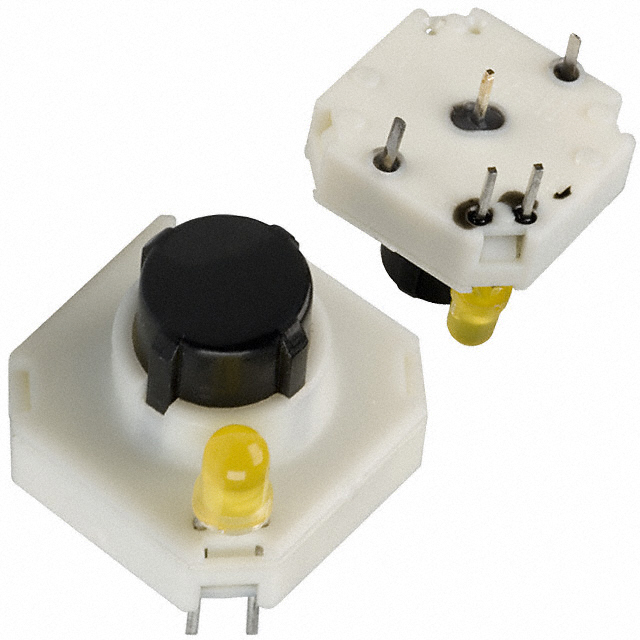

RAFI
| Part Number | 3.14100.8430000 | Manufacturer | RAFI |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.25A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6265 pcs | Data sheet | 3.14100.8430000.pdf |
| Termination Style | PC Pin | Switch Travel | 0.50mm |
| Switch Function | Off-Mom | Series | RF15R |
| Packaging | Tube | Outline | 15.00mm x 15.00mm |
| Other Names | *3.14100.8430000 3.14.100.843/0000 3.14100.843/0000 3141008430000 |
Operating Temperature | -25°C ~ 70°C |
| Operating Force | 296gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | LED, Yellow |
| Illumination | Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.25A @ 35VAC/DC |
| Circuit | SPST-NO | Actuator Type | Round Button |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 12.50mm |
