RAFI
| Part Number | 1.15108.6310100 | Manufacturer | RAFI |
|---|---|---|---|

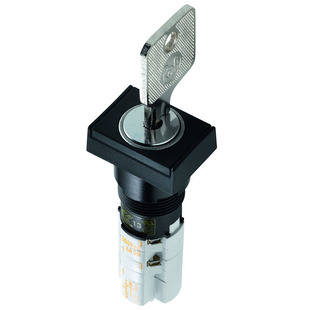

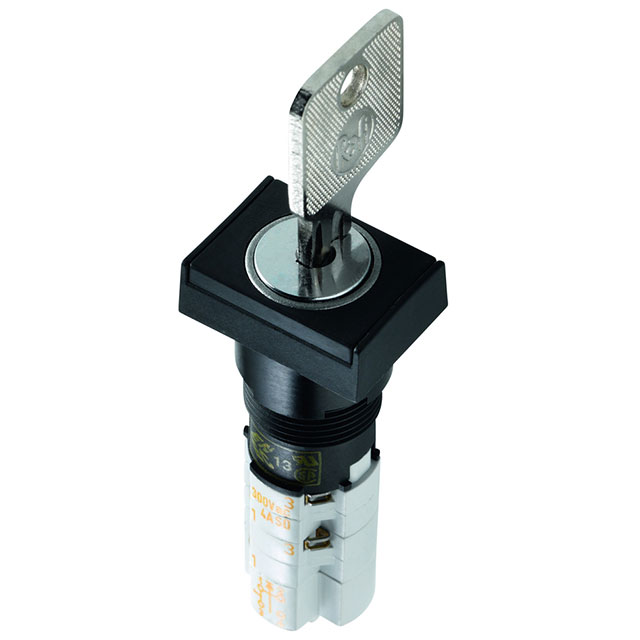

| Description | SWITCH KEYLOCK 2POS DPST 4A 250V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1500 pcs | Data sheet | 1.15108.6310100.pdf |
| Voltage Rating - DC | 230V | Voltage Rating - AC | 250V |
| Termination Style | Solder Lug | Switch Function | On-Off, Off-On |
| Series | LUMOTAST 75 | Panel Cutout Dimensions | Circular - 16.20mm Dia |
| Other Names | *1.15108.6310100 1.15.108.631/0100 1.15108.631//0100 1.15108.631/0100 Q3435801A |
Operating Temperature | -25°C ~ 70°C |
| Number of Positions | 2 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Key Removable Positions | All | Features | IP40 |
| Electrical Life | - | Detailed Description | Keylock Switch 2 Position DPST-NO/NC 4A (AC), 200mA (DC) 250VAC 230VDC Panel Mount |
| Depth Behind Flange | - | Current Rating | 4A (AC), 200mA (DC) |
| Contact Timing | Not Specified | Contact Material | Silver (Ag) |
| Contact Finish | - | Circuit | DPST-NO/NC |
| Angle of Throw | 90° | Actuator Type | Flat Key |
