RAFI
| Part Number | 1.14001.5510000 | Manufacturer | RAFI |
|---|---|---|---|

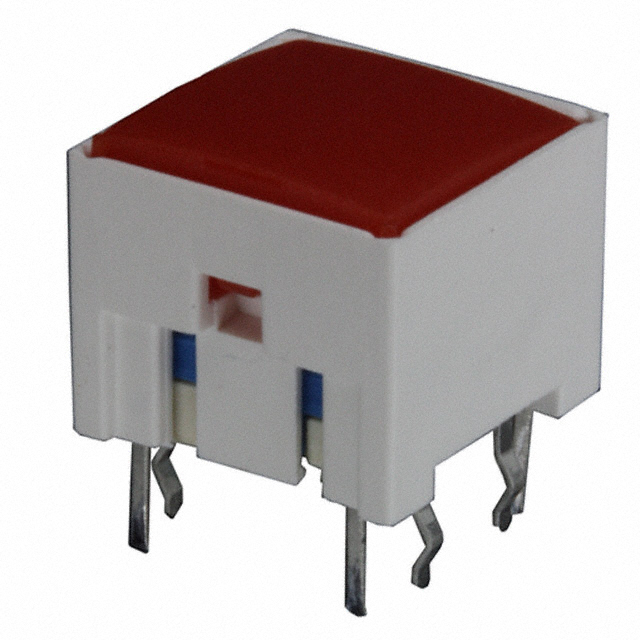

| Description | SWITCH TACTILE SPST-NO 0.1A 42V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7841 pcs | Data sheet | 1.14001.5510000.pdf |
| Termination Style | PC Pin | Switch Travel | 0.34mm |
| Switch Function | Off-Mom | Series | RACON 12I |
| Packaging | Tube | Outline | 11.35mm x 11.35mm |
| Other Names | *1.14001.5510000 1.14.001.551/0000 1.14001.551//0000 1.14001.551/0000 1.14001.5510000-ND 1140015510000 1715-1670 CKN9368 CKN9368-ND |
Operating Temperature | -40°C ~ 80°C |
| Operating Force | 330gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 1.8 VDC |
| Illumination Type, Color | LED, Red | Illumination | Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.1A @ 42VAC/DC | Circuit | SPST-NO |
| Actuator Type | Square Button | Actuator Orientation | Top Actuated |
| Actuator Material | - | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 9.70mm |
