X-1569

Pulse Electronics Corporation

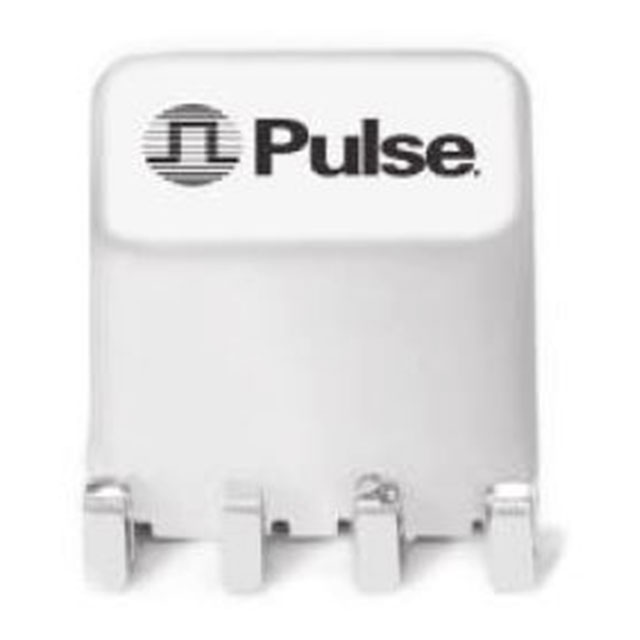

Image may be representation. See specifications for product details.

Product Overview

Part Number:	X-1569
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFMR GATE DRIVE 1500VDC ISO
Datasheets:	1.X-1569.pdf 2.X-1569.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	10954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10954 pcs

Reference Price (In US Dollars)

1 pcs: $3.446

10 pcs: $2.64

25 pcs: $2.237

50 pcs: $2.20

100 pcs: $2.09

250 pcs: $2.068

500 pcs: $2.039

1000 pcs: $2.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.446

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of X-1569

Part Number	X-1569	Manufacturer	Pulse Electronics Corporation
Description	XFMR GATE DRIVE 1500VDC ISO	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	10954 pcs	Data sheet	1.X-1569.pdf 2.X-1569.pdf
Weight	-	Turns Ratio - Primary:Secondary	1:1:1
Transformer Type	Gate Drive	Size / Dimension	0.355" L x 0.340" W (9.01mm x 8.63mm)
Series	-	Other Names	1902-1055-5
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance	3.3mH
Height - Seated (Max)	0.300" (7.62mm)	Energy Time (E.T.)	45.1V µS
