W3796

Pulse Electronics Corporation

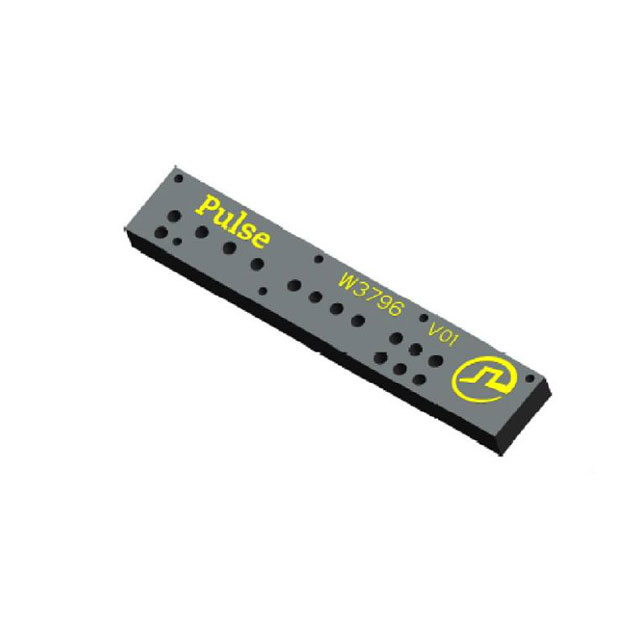

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W3796
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 829MHZ/1.575GHZ FLAT BAR
Datasheets:	1.W3796.pdf 2.W3796.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23318 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23318 pcs

Reference Price (In US Dollars)

1 pcs: $1.553

10 pcs: $1.386

25 pcs: $1.247

100 pcs: $1.136

250 pcs: $1.026

500 pcs: $0.92

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.553

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W3796

Part Number	W3796	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 829MHZ/1.575GHZ FLAT BAR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23318 pcs	Data sheet	1.W3796.pdf 2.W3796.pdf
VSWR	3	Termination	Solder
Series	Domino	Return Loss	-6dB
Power - Max	5W	Packaging	Cut Tape (CT)
Other Names	553-3657-1	Number of Bands	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Height (Max)	0.118" (3.00mm)
Gain	1.5dBi, 2dBi, 5.5dBi, 5dBi	Frequency Range	698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz
Frequency Group	Wide Band	Frequency (Center/Band)	829MHz, 1.575GHz, 1.9GHz, 2.5GHz
Features	-	Detailed Description	829MHz, 1.575GHz, 1.9GHz, 2.5GHz GPS, LTE Flat Bar RF Antenna 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz 1.5dBi, 2dBi, 5.5dBi, 5dBi Solder Surface Mount
Applications	GPS, LTE	Antenna Type	Flat Bar
