W3544A

Pulse Electronics Corporation

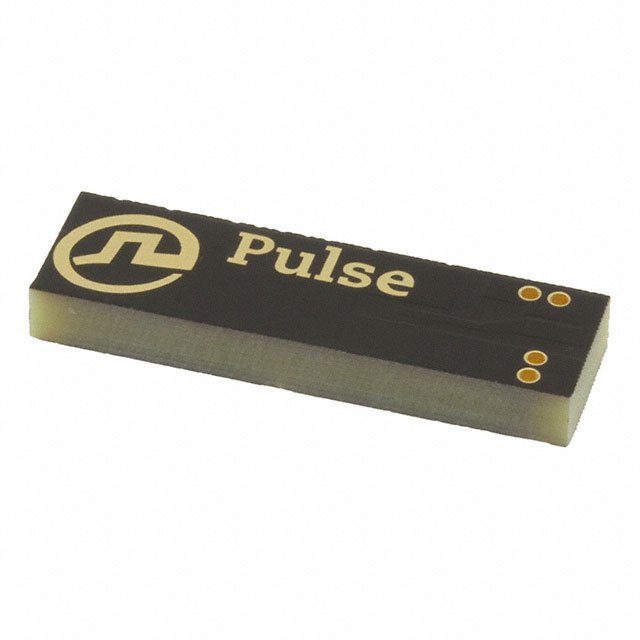

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W3544A
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 850MHZ/900MHZ CHIP SLD
Datasheets:	1.W3544A.pdf 2.W3544A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38098 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 38098 pcs

Reference Price (In US Dollars)

1 pcs: $0.863

10 pcs: $0.781

25 pcs: $0.698

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.863

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W3544A

Part Number	W3544A	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 850MHZ/900MHZ CHIP SLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38098 pcs	Data sheet	1.W3544A.pdf 2.W3544A.pdf
VSWR	-	Termination	Solder
Series	-	Return Loss	-4.1dB, -4.6dB, -16.3dB, -12.3dB
Packaging	Cut Tape (CT)	Other Names	553-2572 553-2572-1 553-2572-ND W3544A-ND
Number of Bands	5	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.118" (3.00mm)	Gain	-1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi
Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Frequency Group	Wide Band
Frequency (Center/Band)	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	Features	-
Detailed Description	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz -1.9dBi, -1.3dBi, -1.3dBi, -1.66dBi Solder Surface Mount	Applications	GSM
Antenna Type	Chip
