W3315B0100

Pulse Electronics Corporation

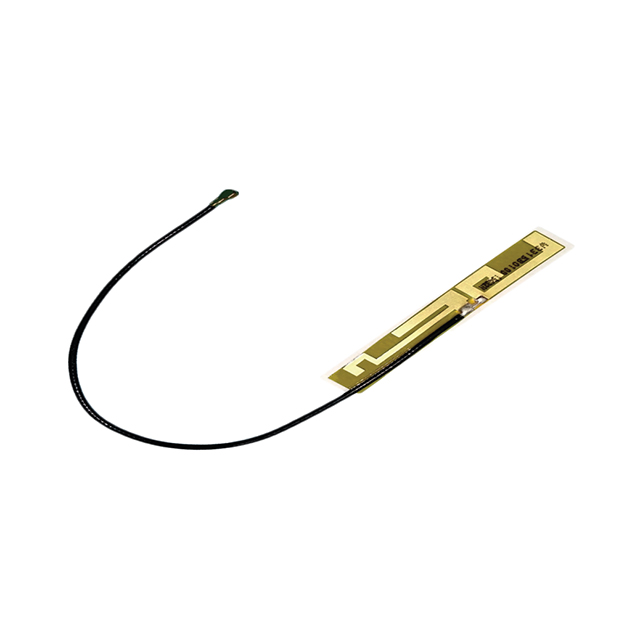

Image may be representation. See specifications for product details.

Product Overview

Part Number:	W3315B0100
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	RF ANT 2.4/5.4GHZ PCB TRACE IPEX
Datasheets:	1.W3315B0100.pdf 2.W3315B0100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19941 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19941 pcs

Reference Price (In US Dollars)

1 pcs: $1.496

10 pcs: $1.337

25 pcs: $1.203

100 pcs: $1.096

250 pcs: $0.989

500 pcs: $0.887

1000 pcs: $0.748

2500 pcs: $0.711

5000 pcs: $0.684

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.496

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of W3315B0100

Part Number	W3315B0100	Manufacturer	Pulse Electronics Corporation
Description	RF ANT 2.4/5.4GHZ PCB TRACE IPEX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19941 pcs	Data sheet	1.W3315B0100.pdf 2.W3315B0100.pdf
VSWR	2	Termination	Connector, IPEX MHF
Series	-	Return Loss	-
Power - Max	2W	Packaging	Bulk
Other Names	553-3382	Number of Bands	2
Mounting Type	Adhesive	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	-	Gain	5dBi
Frequency Range	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz	Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band)	2.4GHz, 5.4GHz	Features	-
Detailed Description	2.4GHz, 5.4GHz Bluetooth, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 5dBi Connector, IPEX MHF Adhesive	Applications	Bluetooth, WLAN, Zigbee™
Antenna Type	PCB Trace
