T6003NLT

Pulse Electronics Corporation

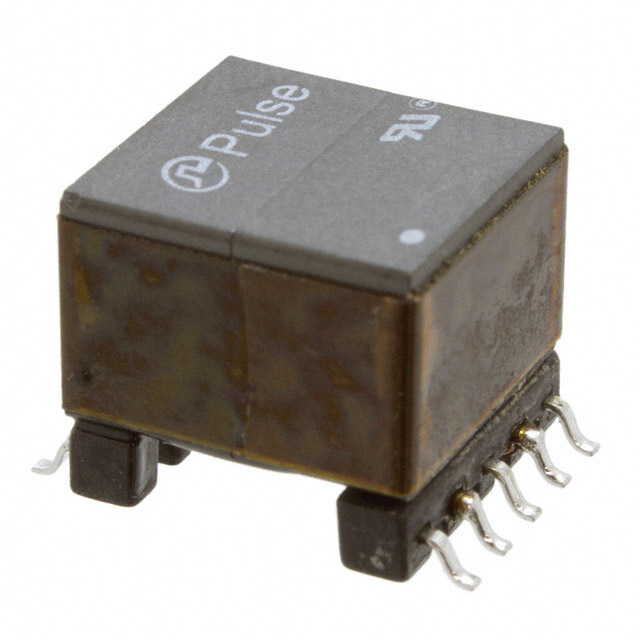

Image may be representation. See specifications for product details.

Product Overview

Part Number:	T6003NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	TRANSFORMER AUDIO 1:1 SMD
Datasheets:	T6003NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25499 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25499 pcs

Reference Price (In US Dollars)

150 pcs: $1.503

300 pcs: $1.456

750 pcs: $1.409

1050 pcs: $1.362

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.503

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of T6003NLT

Part Number	T6003NLT	Manufacturer	Pulse Electronics Corporation
Description	TRANSFORMER AUDIO 1:1 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25499 pcs	Data sheet	T6003NLT.pdf
Weight	0.015 lb (6.8g)	Voltage - Isolation	1500Vrms
Turns Ratio - Primary:Secondary	1:1	Transformer Type	General Purpose
Termination Style	Gull Wing	Size / Dimension	0.530" L x 0.516" W (13.46mm x 13.11mm)
Series	-	Return Loss	20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz
Power Level	-	Packaging	Tape & Reel (TR)
Other Names	553-2102-2 T6003NLT-ND	Operating Temperature	-
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz	Impedance - Secondary (Ohms)	600
Impedance - Primary (Ohms)	600	Height - Seated (Max)	0.485" (12.32mm)
Frequency Response	-	Frequency Range	-
DC Resistance (DCR) - Secondary	70 Ohm	DC Resistance (DCR) - Primary	55 Ohm
Approvals	-
