T1094NLT

Pulse Electronics Corporation

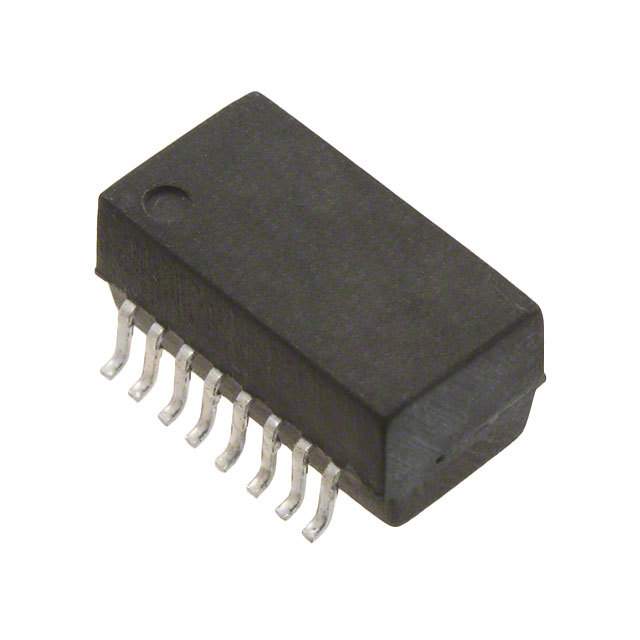

Image may be representation. See specifications for product details.

Product Overview

Part Number:	T1094NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH
Datasheets:	T1094NLT.pdf
RoHs Status	Lead free by exemption / RoHS Compliant
Stock Condition	30525 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30525 pcs

Reference Price (In US Dollars)

600 pcs: $1.00

1200 pcs: $0.969

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.00

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of T1094NLT

Part Number	T1094NLT	Manufacturer	Pulse Electronics Corporation
Description	XFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH	Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant
Quantity Available	30525 pcs	Data sheet	T1094NLT.pdf
Weight	0.032 oz (0.912g)	Turns Ratio - Primary:Secondary	1CT:1CT, 1CT:2CT
Transformer Type	T1/E1 (Dual)	Size / Dimension	0.505" L x 0.280" W (12.83mm x 7.11mm)
Series	-	Packaging	Tape & Reel (TR)
Other Names	553-2039-2 T1094NLT-ND	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free by exemption / RoHS Compliant
Inductance	1.2mH, 1.2mH	Height - Seated (Max)	0.245" (6.22mm)
Energy Time (E.T.)	-
