PL8210NL

Pulse Electronics Corporation

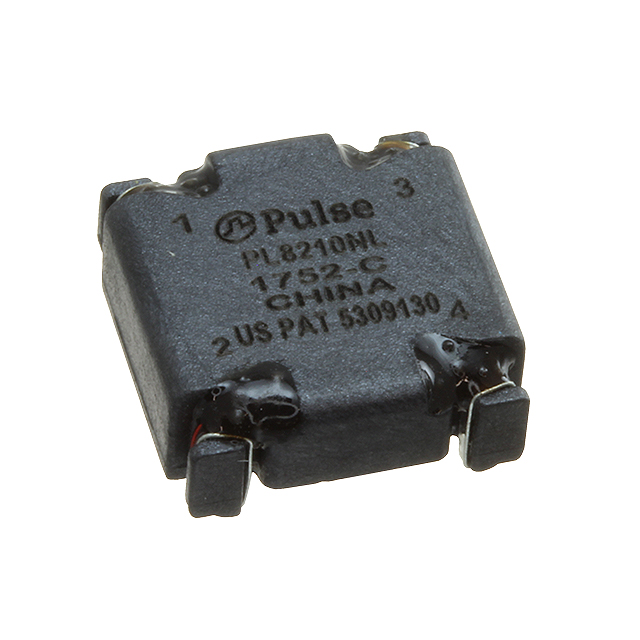

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PL8210NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 1.22A 2LN SMD
Datasheets:	PL8210NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11684 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11684 pcs

Reference Price (In US Dollars)

1 pcs: $2.94

40 pcs: $2.406

120 pcs: $1.818

520 pcs: $1.657

1000 pcs: $1.55

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.94

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PL8210NL

Part Number	PL8210NL	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 1.22A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11684 pcs	Data sheet	PL8210NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pad	Other Names	1902-1030-5
Operating Temperature	-55°C ~ 130°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.215" (5.46mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 1.22A DCR 200 mOhm
DC Resistance (DCR) (Max)	200 mOhm	Current Rating (Max)	1.22A
Approvals	-
