PL8200

Pulse Electronics Corporation

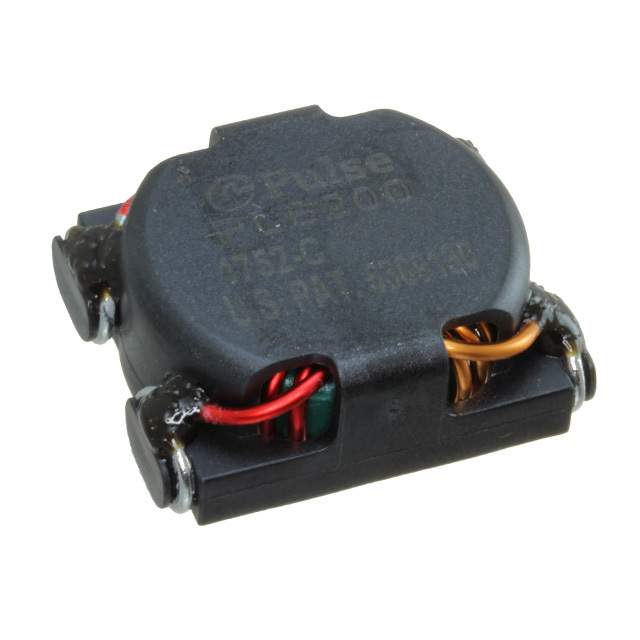

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PL8200
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 14A 2LN SMD
Datasheets:	PL8200.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	8130 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8130 pcs

Reference Price (In US Dollars)

1 pcs: $4.252

15 pcs: $4.021

105 pcs: $3.331

510 pcs: $3.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.252

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PL8200

Part Number	PL8200	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 14A 2LN SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	8130 pcs	Data sheet	PL8200.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.220" L x 1.000" W (30.99mm x 25.40mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pad	Other Names	1902-1021-5
Operating Temperature	-55°C ~ 130°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Height (Max)	0.500" (12.70mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 14A DCR 8 mOhm
DC Resistance (DCR) (Max)	8 mOhm	Current Rating (Max)	14A
Approvals	-
