PH9363NLT

Pulse Electronics Corporation

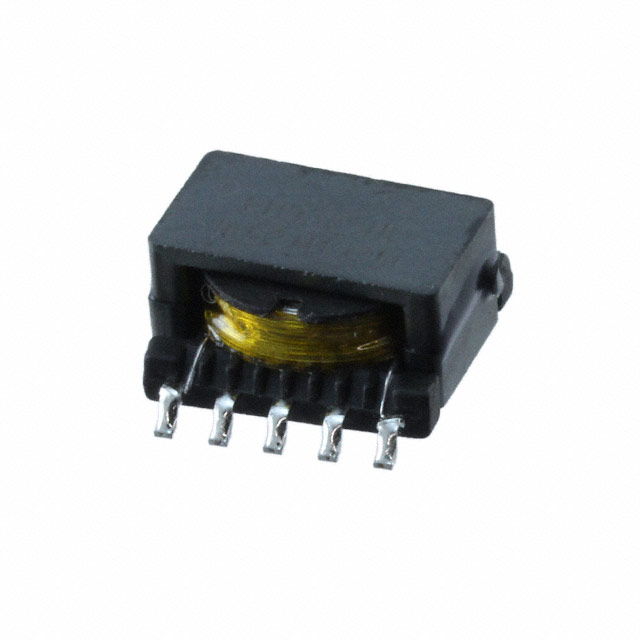

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PH9363NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMER FLYBACK DC/DC CONV SMD
Datasheets:	PH9363NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20504 pcs

Reference Price (In US Dollars)

1 pcs: $1.763

10 pcs: $1.429

25 pcs: $1.155

50 pcs: $1.082

100 pcs: $1.034

250 pcs: $1.003

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.763

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PH9363NLT

Part Number	PH9363NLT	Manufacturer	Pulse Electronics Corporation
Description	XFRMER FLYBACK DC/DC CONV SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20504 pcs	Data sheet	PH9363NLT.pdf
Voltage - Primary	8 ~ 18V	Voltage - Isolation	2500Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Size / Dimension	0.472" L x 0.366" W (12.00mm x 9.30mm)	Series	-
Packaging	Cut Tape (CT)	Other Names	553-3662-1
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	ACPL-32JT, ACPL-302J
Inductance @ Frequency	-	Height - Seated (Max)	0.266" (6.75mm)
Frequency	80kHz	Footprint	0.472" L x 0.512" W (12.00mm x 13.00mm)
Chipset Manufacturer	-	Applications	Flyback Converters
