PG1096.152NLT

Pulse Electronics Corporation

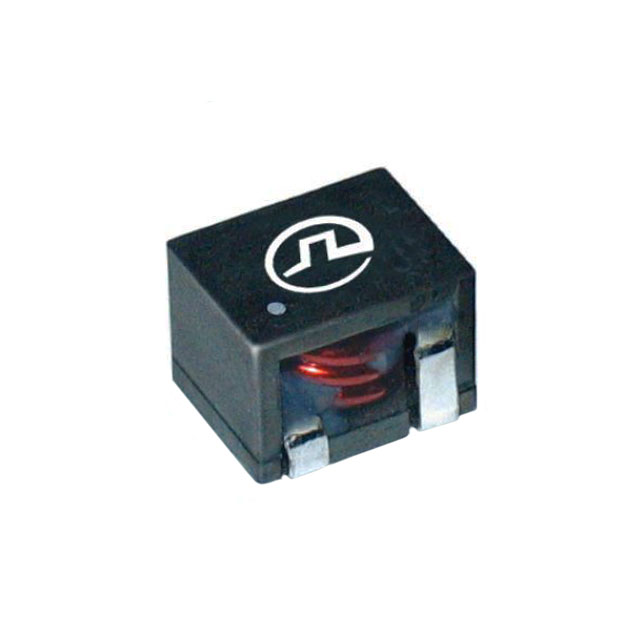

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PG1096.152NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1.35UH
Datasheets:	PG1096.152NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16937 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16937 pcs

Reference Price (In US Dollars)

1 pcs: $2.229

10 pcs: $2.025

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.229

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PG1096.152NLT

Part Number	PG1096.152NLT	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1.35UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16937 pcs	Data sheet	PG1096.152NLT.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	1.024" L x 1.024" W (26.00mm x 26.00mm)
Shielding	Unshielded	Series	PG1096NL
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	553-3725-1	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1.35µH
Height - Seated (Max)	0.512" (13.00mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	1.35µH Unshielded Wirewound Inductor 5A 0.85 mOhm Nonstandard
DC Resistance (DCR)	0.85 mOhm	Current Rating	5A
Current - Saturation	65A
