PE-96161NL

Pulse Electronics CorporationPulse Electronics Corporation

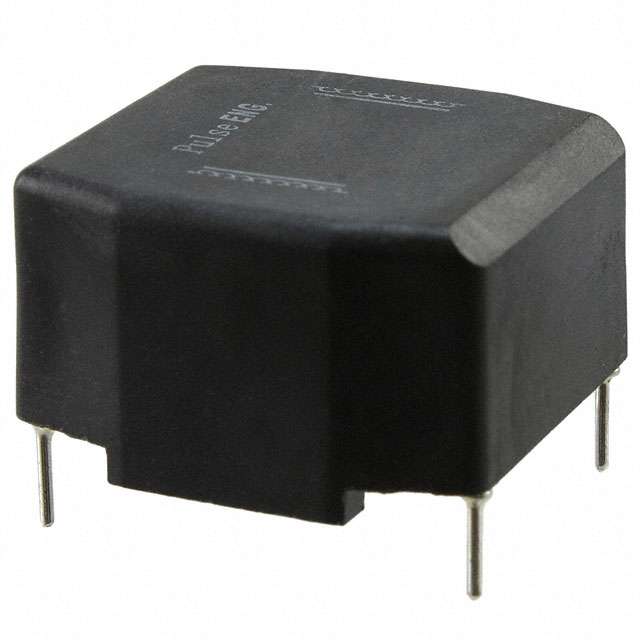

PE-96161NL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PE-96161NL
Manufacturer/Brand: Pulse Electronics Corporation
Product description COMMON MODE CHOKE 500MA 2LN TH
Datasheets: PE-96161NL.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6732 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6732 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PE-96161NL

Part Number PE-96161NL Manufacturer Pulse Electronics Corporation
Description COMMON MODE CHOKE 500MA 2LN TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6732 pcs Data sheet PE-96161NL.pdf
Voltage Rating - DC - Voltage Rating - AC -
Size / Dimension 1.102" L x 1.070" W (28.00mm x 27.18mm) Series -
Ratings - Packaging Tray
Package / Case Horizontal, 4 PC Pin Operating Temperature -40°C ~ 125°C
Number of Lines 2 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height (Max) 0.660" (16.76mm) Filter Type Power Line
Features - Detailed Description 2 Line Common Mode Choke Through Hole 500mA (Typ) DCR 1.4 Ohm
DC Resistance (DCR) (Max) 1.4 Ohm Current Rating (Max) 500mA (Typ)
Approvals -
