PE-67100NL

Pulse Electronics Corporation

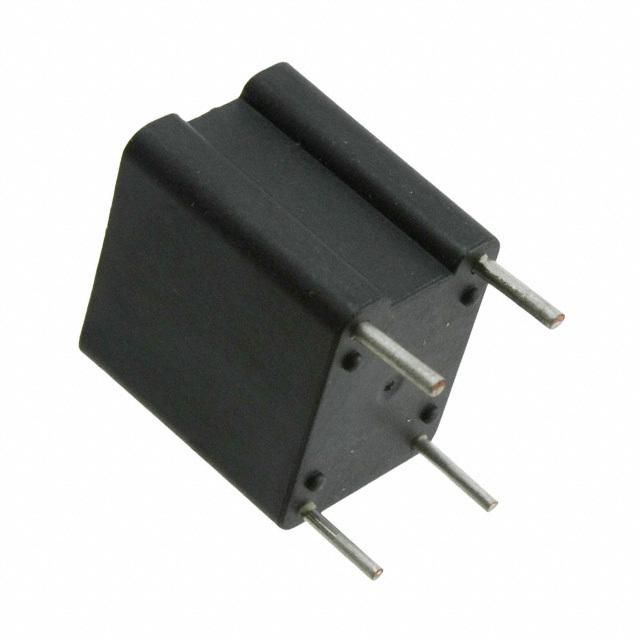

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-67100NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 37A T/H
Datasheets:	PE-67100NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17179 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17179 pcs

Reference Price (In US Dollars)

1 pcs: $1.806

10 pcs: $1.373

25 pcs: $1.337

80 pcs: $1.228

160 pcs: $1.156

320 pcs: $1.12

560 pcs: $1.084

1040 pcs: $1.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.806

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-67100NL

Part Number	PE-67100NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 37A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17179 pcs	Data sheet	PE-67100NL.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	-	Termination Style	PC Pin
Size / Dimension	0.565" L x 0.750" W (14.35mm x 19.05mm)	Series	-
Ratings	-	Packaging	Tray
Other Names	553-1900 PE-67100NL-ND PE67100NL	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	20mH
Height - Seated (Max)	0.750" (19.05mm)	Frequency Range	10kHz ~ 200kHz
Energy Time (E.T.)	-	Detailed Description	37A Current Sense Transformer 10kHz ~ 200kHz 56 Ohm Primary, 1.4 Ohm Secondary 20mH Through Hole
DC Resistance (DCR)	56 Ohm Primary, 1.4 Ohm Secondary	Current Ratio	100:1
Current Rating	37A
