PE-65554NL

Pulse Electronics Corporation

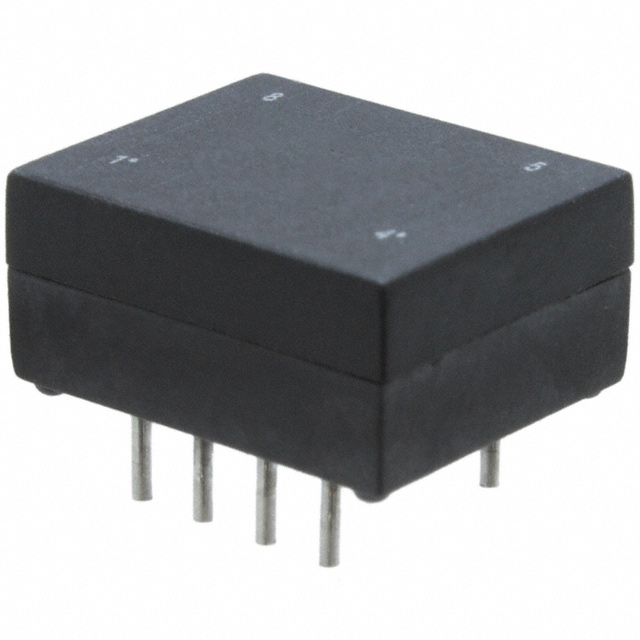

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-65554NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 4LN TH
Datasheets:	PE-65554NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24461 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24461 pcs

Reference Price (In US Dollars)

1 pcs: $1.445

10 pcs: $1.172

35 pcs: $0.947

70 pcs: $0.887

105 pcs: $0.847

280 pcs: $0.823

525 pcs: $0.798

1015 pcs: $0.773

5005 pcs: $0.71

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.445

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-65554NL

Part Number	PE-65554NL	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 4LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24461 pcs	Data sheet	PE-65554NL.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.595" L x 0.480" W (15.11mm x 12.19mm)	Series	-
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 8 PC Pin	Other Names	553-1892-5 PE-65554NL-ND PE65554NL
Operating Temperature	0°C ~ 70°C	Number of Lines	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.300" (7.62mm)	Filter Type	Signal Line
Features	-	Detailed Description	4 Line Common Mode Choke Through Hole DCR 300 mOhm
DC Resistance (DCR) (Max)	300 mOhm	Current Rating (Max)	-
Approvals	-
