PE-54038NL

Pulse Electronics Corporation

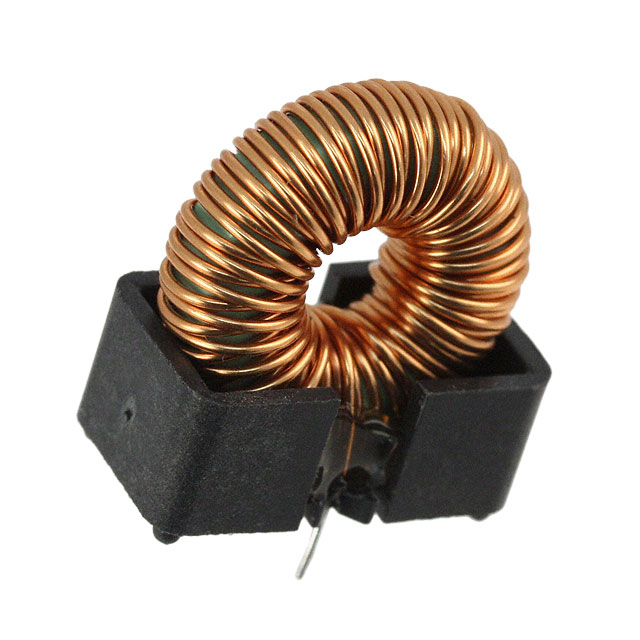

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-54038NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 77UH 2.7A 90 MOHM TH
Datasheets:	PE-54038NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26378 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26378 pcs

Reference Price (In US Dollars)

1 pcs: $1.409

70 pcs: $0.986

140 pcs: $0.845

560 pcs: $0.751

1050 pcs: $0.704

2520 pcs: $0.681

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.409

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-54038NL

Part Number	PE-54038NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 77UH 2.7A 90 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26378 pcs	Data sheet	PE-54038NL.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.830" L x 0.450" W (21.09mm x 11.43mm)
Shielding	Shielded	Series	-
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Radial
Other Names	553-1539 PE-54038NL-ND PE54038NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	20kHz
Inductance	77µH	Height - Seated (Max)	0.950" (24.13mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	77µH Shielded Toroidal Inductor 2.7A 90 mOhm Radial	DC Resistance (DCR)	90 mOhm
Current Rating	2.7A	Current - Saturation	-
