PE-53361NL

Pulse Electronics Corporation

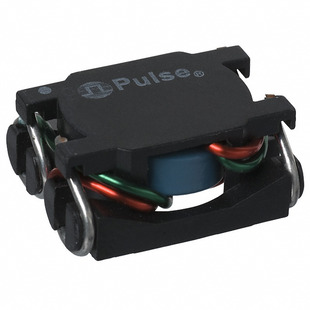

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-53361NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 530NH 23.8A 3 MOHM SMD
Datasheets:	PE-53361NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26547 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26547 pcs

Reference Price (In US Dollars)

1 pcs: $1.116

25 pcs: $0.929

100 pcs: $0.669

500 pcs: $0.595

1000 pcs: $0.558

2500 pcs: $0.539

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.116

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-53361NL

Part Number	PE-53361NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 530NH 23.8A 3 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26547 pcs	Data sheet	PE-53361NL.pdf
Type	Toroidal	Tolerance	-
Supplier Device Package	-	Size / Dimension	0.865" L x 0.715" W (21.97mm x 18.16mm)
Shielding	Unshielded	Series	SLIC
Ratings	-	Q @ Freq	-
Packaging	Tube	Package / Case	Nonstandard
Other Names	553-1813-5 PE-53361NL-ND PE53361NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	530nH
Height - Seated (Max)	0.390" (9.91mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	530nH Unshielded Toroidal Inductor 23.8A 3 mOhm Max Nonstandard
DC Resistance (DCR)	3 mOhm Max	Current Rating	23.8A
Current - Saturation	-
