Pulse Electronics Corporation

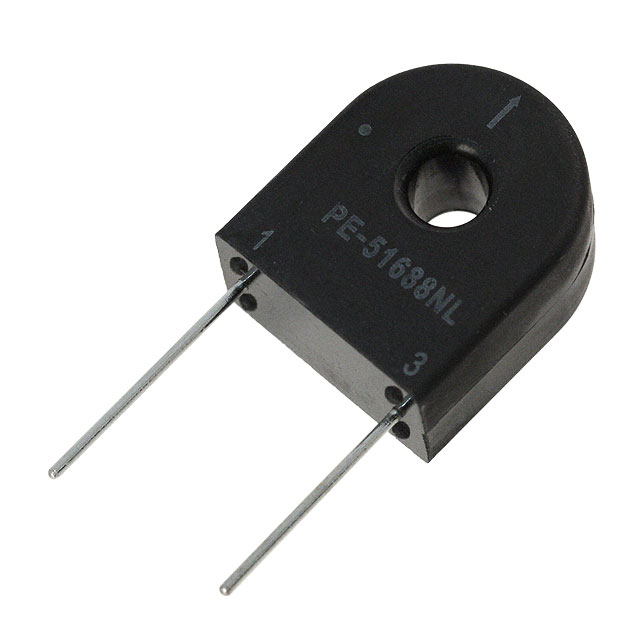

| Part Number | PE-51688NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29730 pcs | Data sheet | PE-51688NL.pdf |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.670" L x 0.390" W (17.01mm x 9.90mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1546 PE-51688NL-ND PE51688NL |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 80mH | Height - Seated (Max) | 0.800" (20.32mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | - |
| Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole | DC Resistance (DCR) | 200 Ohm Primary, 4.5 Ohm Secondary |
| Current Ratio | 200:1 | Current Rating | 20A |
