PE-0805CCMC900STS

Pulse Electronics Corporation

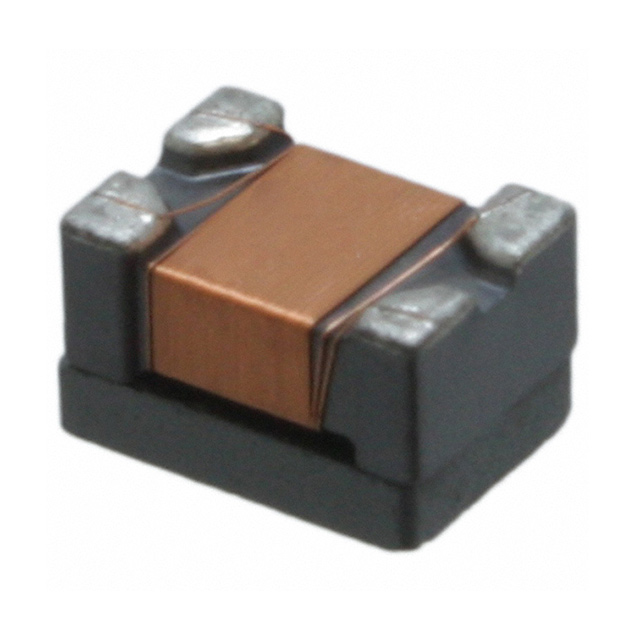

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-0805CCMC900STS
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CMC 330MA 2LN 90 OHM SMD
Datasheets:	PE-0805CCMC900STS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	287248 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 287248 pcs

Reference Price (In US Dollars)

2000 pcs: $0.111

4000 pcs: $0.104

6000 pcs: $0.101

10000 pcs: $0.098

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.111

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-0805CCMC900STS

Part Number	PE-0805CCMC900STS	Manufacturer	Pulse Electronics Corporation
Description	CMC 330MA 2LN 90 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	287248 pcs	Data sheet	PE-0805CCMC900STS.pdf
Voltage Rating - DC	50V	Voltage Rating - AC	-
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)	Series	ChipChoke™ CCMC
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Horizontal, 4 PC Pad	Other Names	553-2295-2 PE-0805CCMC900STS-ND
Operating Temperature	-	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance @ Frequency	90 Ohms @ 100MHz	Height (Max)	0.051" (1.30mm)
Filter Type	Signal Line	Features	-
Detailed Description	2 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 330mA DCR 350 mOhm	DC Resistance (DCR) (Max)	350 mOhm
Current Rating (Max)	330mA	Approvals	-
