PB2020.472NL

Pulse Electronics Corporation

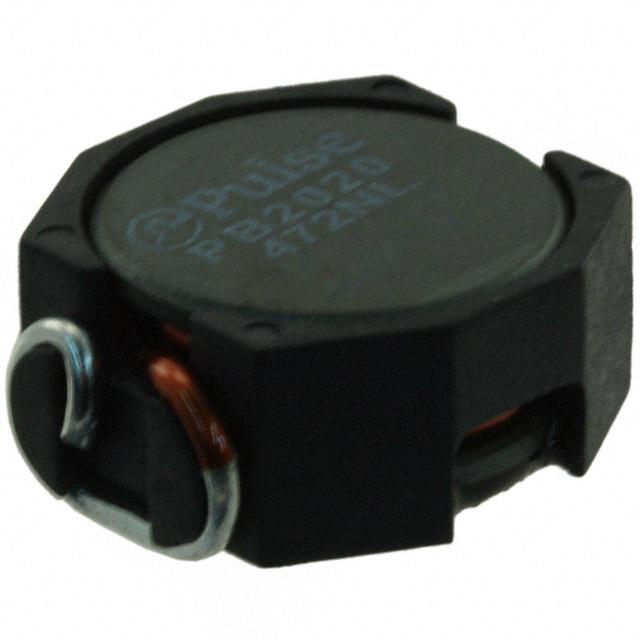

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PB2020.472NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 4.7UH 16.8A 4.5 MOHM
Datasheets:	PB2020.472NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31049 pcs

Reference Price (In US Dollars)

1 pcs: $1.192

20 pcs: $1.093

100 pcs: $0.715

500 pcs: $0.636

1000 pcs: $0.596

2500 pcs: $0.576

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.192

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PB2020.472NL

Part Number	PB2020.472NL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 4.7UH 16.8A 4.5 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31049 pcs	Data sheet	PB2020.472NL.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.940" L x 0.820" W (23.87mm x 20.83mm)
Shielding	Unshielded	Series	PB2020NL
Ratings	-	Q @ Freq	-
Packaging	Tube	Package / Case	Nonstandard
Other Names	553-1798-5 PB2020.472NL-ND PB2020472NL	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	4.7µH
Height - Seated (Max)	0.400" (10.16mm)	Frequency - Self Resonant	-
Features	-	Detailed Description	4.7µH Unshielded Wirewound Inductor 16.8A 4.5 mOhm Max Nonstandard
DC Resistance (DCR)	4.5 mOhm Max	Current Rating	16.8A
Current - Saturation	28A
