PA4547.822NLT

Pulse Electronics Corporation

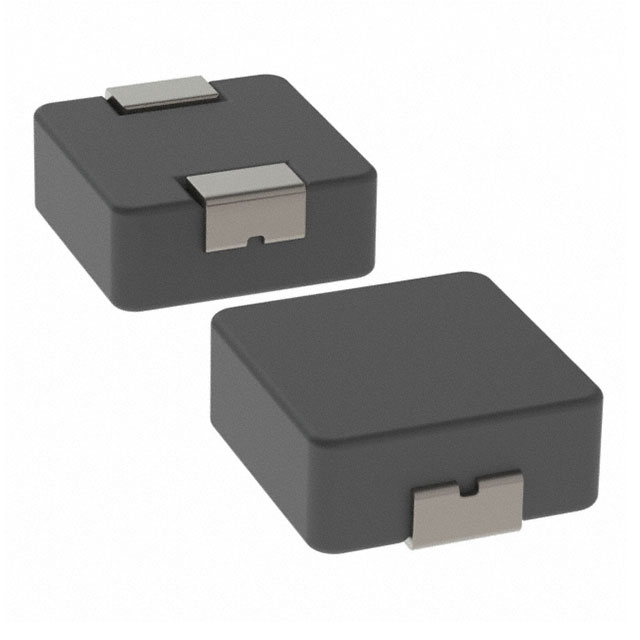

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4547.822NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 8.2UH SMT 3.8 X 3.4
Datasheets:	PA4547.822NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	180228 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 180228 pcs

Reference Price (In US Dollars)

3000 pcs: $0.207

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.207

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4547.822NLT

Part Number	PA4547.822NLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 8.2UH SMT 3.8 X 3.4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	180228 pcs	Data sheet	PA4547.822NLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.138" L x 0.126" W (3.50mm x 3.20mm)
Shielding	Unshielded	Series	PA4547.XXXNLT
Ratings	-	Q @ Freq	-
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	8.2µH	Height - Seated (Max)	0.059" (1.50mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	8.2µH Unshielded Molded Inductor 1.3A 468 mOhm Max Nonstandard	DC Resistance (DCR)	468 mOhm Max
Current Rating	1.3A	Current - Saturation	1.8A
