PA4546.103NLT

Pulse Electronics Corporation

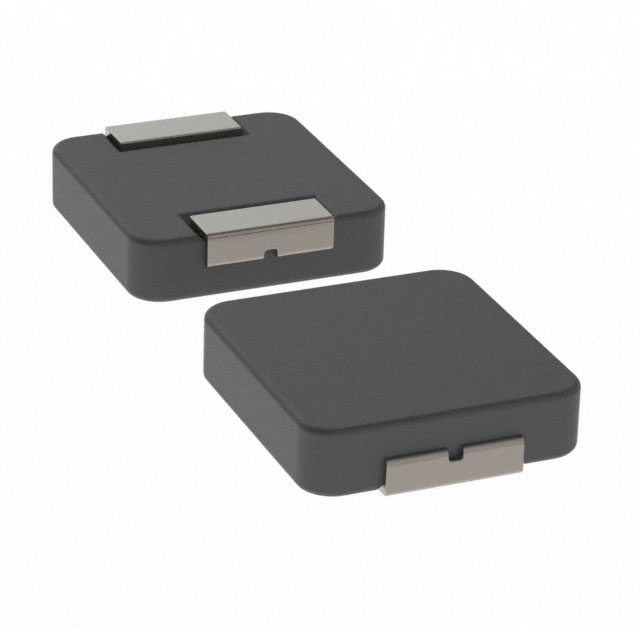

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4546.103NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 10UH SMT 4.7 X 4.3
Datasheets:	PA4546.103NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57666 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57666 pcs

Reference Price (In US Dollars)

1 pcs: $0.538

10 pcs: $0.50

100 pcs: $0.361

500 pcs: $0.277

1000 pcs: $0.246

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.538

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4546.103NLT

Part Number	PA4546.103NLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 10UH SMT 4.7 X 4.3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57666 pcs	Data sheet	PA4546.103NLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Shielding	Unshielded	Series	PA4546.XXXNLT
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	553-4057-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	10µH	Height - Seated (Max)	0.047" (1.20mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	10µH Unshielded Molded Inductor 1.3A 463 mOhm Max Nonstandard	DC Resistance (DCR)	463 mOhm Max
Current Rating	1.3A	Current - Saturation	1.4A
