PA4344.823ANLT

Pulse Electronics Corporation

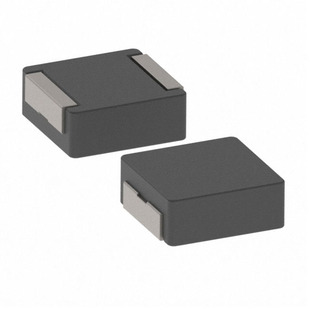

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4344.823ANLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	INDUCTOR 82 UH SMT 17.7 X 17.2
Datasheets:	PA4344.823ANLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35682 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35682 pcs

Reference Price (In US Dollars)

300 pcs: $0.927

600 pcs: $0.873

900 pcs: $0.845

1500 pcs: $0.818

3000 pcs: $0.791

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.927

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4344.823ANLT

Part Number	PA4344.823ANLT	Manufacturer	Pulse Electronics Corporation
Description	INDUCTOR 82 UH SMT 17.7 X 17.2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35682 pcs	Data sheet	PA4344.823ANLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.701" L x 0.665" W (17.80mm x 16.90mm)
Shielding	Shielded	Series	PA4344.XXXANLT
Ratings	AEC-Q200	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-4038-2	Operating Temperature	-55°C ~ 155°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	82µH	Height - Seated (Max)	0.276" (7.00mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	82µH Shielded Molded Inductor 6.5A 83 mOhm Max Nonstandard	DC Resistance (DCR)	83 mOhm Max
Current Rating	6.5A	Current - Saturation	8A
