PA4343.133NLT

Pulse Electronics Corporation

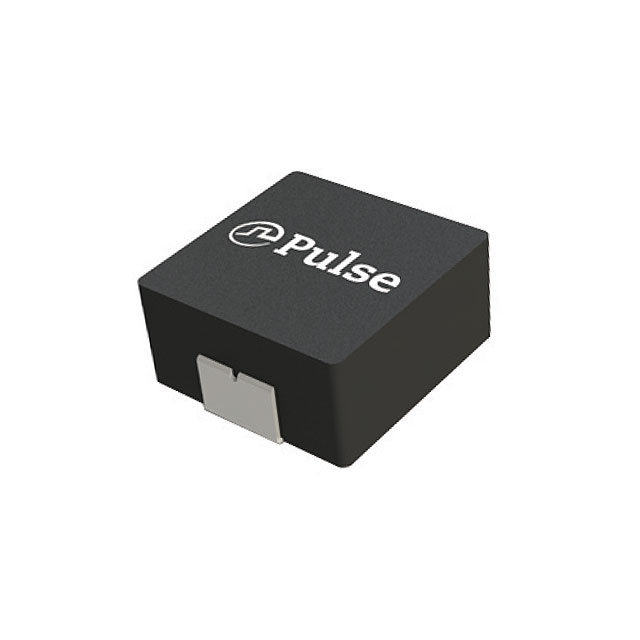

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4343.133NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 13UH 9A 24 MOHM SMD
Datasheets:	PA4343.133NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	101377 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 101377 pcs

Reference Price (In US Dollars)

500 pcs: $0.344

1000 pcs: $0.314

2500 pcs: $0.303

5000 pcs: $0.293

12500 pcs: $0.283

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.344

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4343.133NLT

Part Number	PA4343.133NLT	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 13UH 9A 24 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101377 pcs	Data sheet	PA4343.133NLT.pdf
Type	Molded	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.551" L x 0.504" W (14.00mm x 12.80mm)
Shielding	Shielded	Series	PA4343.XXXNLT
Ratings	AEC-Q200	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-3445-2 PA4343.133NLT-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	13µH	Height - Seated (Max)	0.256" (6.50mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	13µH Shielded Molded Inductor 9A 24 mOhm Max Nonstandard	DC Resistance (DCR)	24 mOhm Max
Current Rating	9A	Current - Saturation	13A
