PA4309.683NLT

Pulse Electronics Corporation

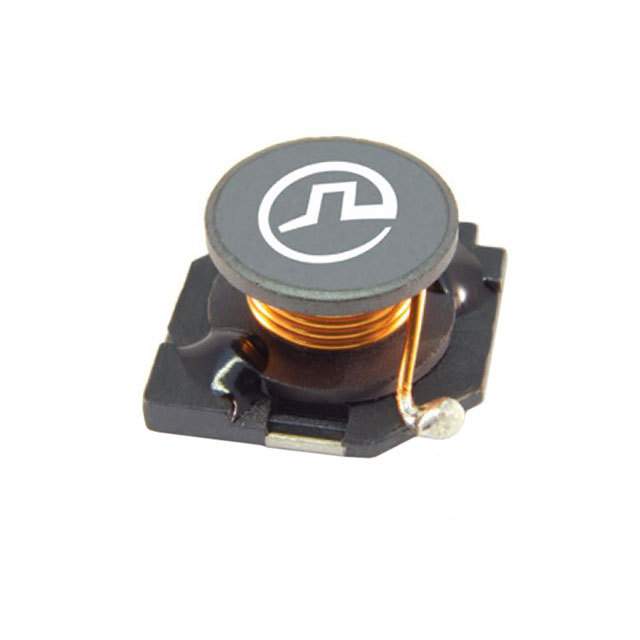

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4309.683NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 68UH 4.2A 298 MOHM SMD
Datasheets:	PA4309.683NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65226 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 65226 pcs

Reference Price (In US Dollars)

1 pcs: $0.48

10 pcs: $0.445

100 pcs: $0.322

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.48

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4309.683NLT

Part Number	PA4309.683NLT	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 68UH 4.2A 298 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65226 pcs	Data sheet	PA4309.683NLT.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.504" L x 0.504" W (12.80mm x 12.80mm)
Shielding	Unshielded	Series	PA4309.XXXNL
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	553-3613-1	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	68µH	Height - Seated (Max)	0.276" (7.00mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	68µH Unshielded Wirewound Inductor 4.2A 298 mOhm Max Nonstandard	DC Resistance (DCR)	298 mOhm Max
Current Rating	4.2A	Current - Saturation	-
