PA4306.223NLT

Pulse Electronics Corporation

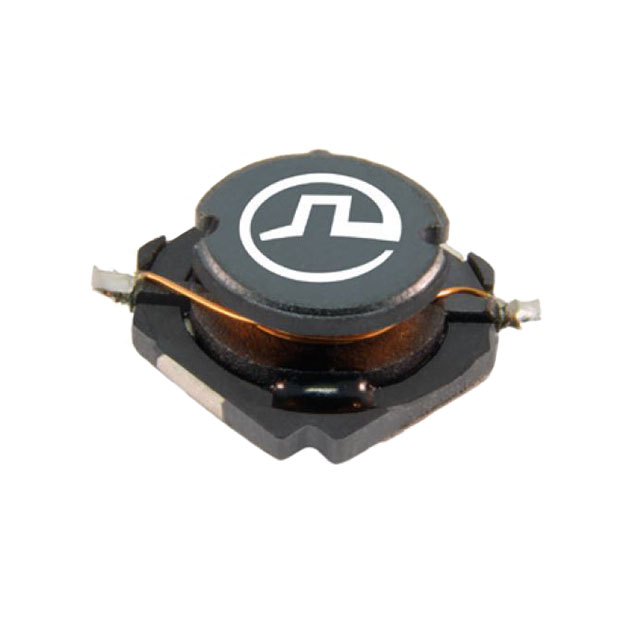

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA4306.223NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 22UH 1.5A 286 MOHM SMD
Datasheets:	PA4306.223NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	216898 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 216898 pcs

Reference Price (In US Dollars)

1000 pcs: $0.156

3000 pcs: $0.151

5000 pcs: $0.146

10000 pcs: $0.141

25000 pcs: $0.137

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.156

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA4306.223NLT

Part Number	PA4306.223NLT	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 22UH 1.5A 286 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	216898 pcs	Data sheet	PA4306.223NLT.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Shielding	Unshielded	Series	PA4306.XXXNL
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	553-3577-2 PA4306.223NLT-ND	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	22µH	Height - Seated (Max)	0.122" (3.10mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	22µH Unshielded Wirewound Inductor 1.5A 286 mOhm Max Nonstandard	DC Resistance (DCR)	286 mOhm Max
Current Rating	1.5A	Current - Saturation	-
