PA3790.221HL

Pulse Electronics Corporation

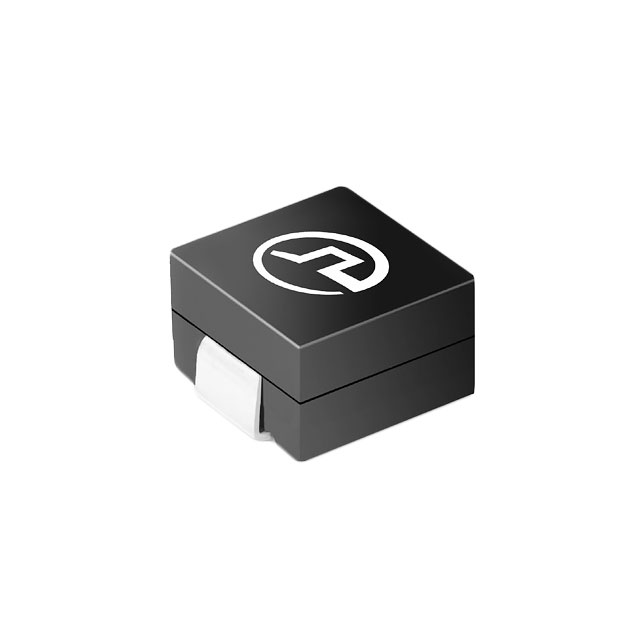

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3790.221HL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 220NH 57A 0.29 MOHM
Datasheets:	PA3790.221HL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	90054 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 90054 pcs

Reference Price (In US Dollars)

1 pcs: $0.405

10 pcs: $0.376

120 pcs: $0.272

600 pcs: $0.208

1080 pcs: $0.185

2520 pcs: $0.179

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.405

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3790.221HL

Part Number	PA3790.221HL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 220NH 57A 0.29 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	90054 pcs	Data sheet	PA3790.221HL.pdf
Type	-	Tolerance	±15%
Supplier Device Package	-	Size / Dimension	0.492" L x 0.315" W (12.50mm x 8.00mm)
Shielding	Shielded	Series	PA3790.XXXHL
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Nonstandard
Other Names	553-2972	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	220nH	Height - Seated (Max)	0.315" (8.00mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	220nH Shielded Inductor 55A 0.29 mOhm Nonstandard	DC Resistance (DCR)	0.29 mOhm
Current Rating	55A	Current - Saturation	63A
