PA3493NL

Pulse Electronics Corporation

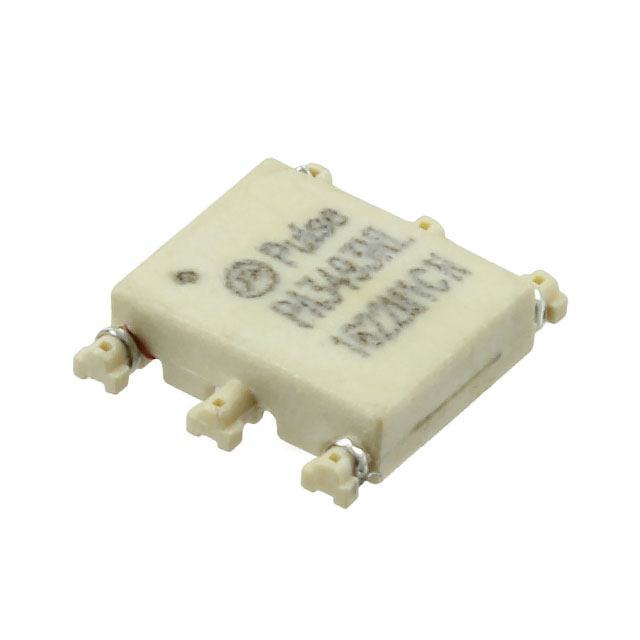

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3493NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1.25:1 656UH
Datasheets:	PA3493NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38190 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38190 pcs

Reference Price (In US Dollars)

1 pcs: $0.932

10 pcs: $0.746

25 pcs: $0.606

50 pcs: $0.59

100 pcs: $0.575

250 pcs: $0.559

500 pcs: $0.555

1000 pcs: $0.491

5000 pcs: $0.45

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.932

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3493NL

Part Number	PA3493NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1.25:1 656UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38190 pcs	Data sheet	PA3493NL.pdf
Turns Ratio - Primary:Secondary	1.25:1	Transformer Type	-
Size / Dimension	0.430" L x 0.380" W (10.92mm x 9.65mm)	Series	-
Packaging	Tube	Other Names	553-2961-5
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	656µH
Height - Seated (Max)	0.105" (2.67mm)	Energy Time (E.T.)	23V µS
