PA3342NL

Pulse Electronics Corporation

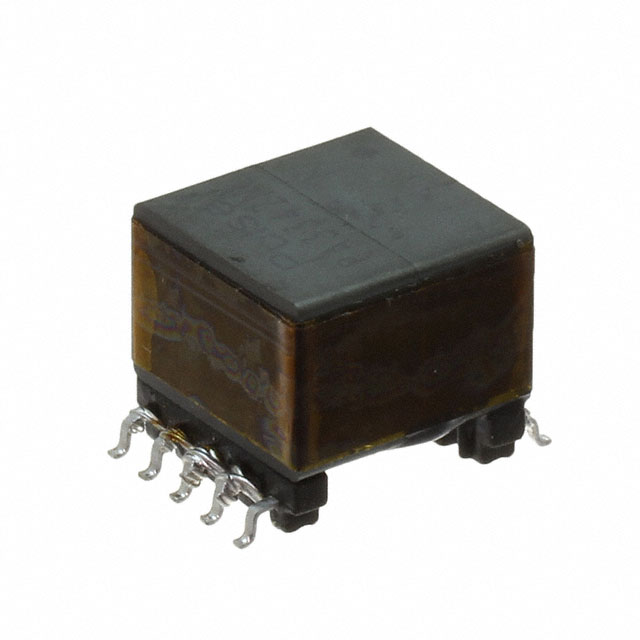

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3342NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 90UH
Datasheets:	PA3342NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24683 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24683 pcs

Reference Price (In US Dollars)

1 pcs: $1.225

10 pcs: $0.993

25 pcs: $0.803

60 pcs: $0.752

120 pcs: $0.719

300 pcs: $0.697

540 pcs: $0.676

1020 pcs: $0.655

5040 pcs: $0.602

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.225

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3342NL

Part Number	PA3342NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 90UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24683 pcs	Data sheet	PA3342NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	-
Transformer Type	-	Size / Dimension	0.551" L x 0.516" W (14.00mm x 13.11mm)
Series	-	Other Names	553-3887 PA3342NL-ND
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	90µH
Height - Seated (Max)	0.485" (12.32mm)	Energy Time (E.T.)	-
