PA3136.211HL

Pulse Electronics Corporation

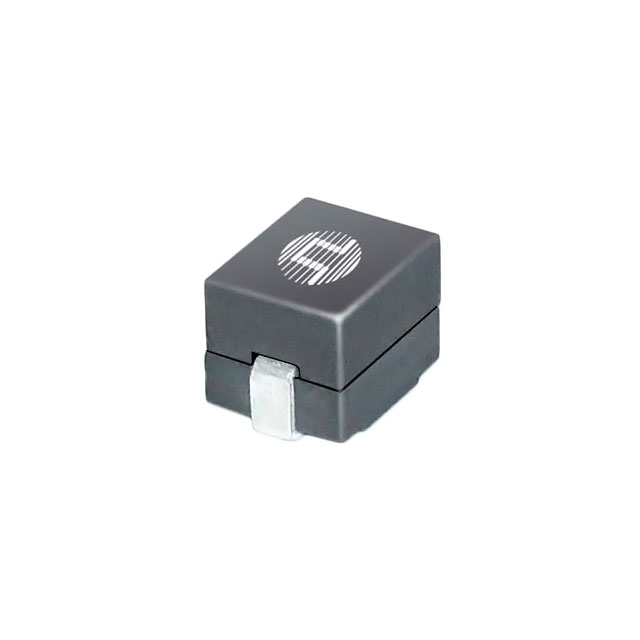

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA3136.211HL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED INDUCT 210NH 50A 0.23 MOHM
Datasheets:	PA3136.211HL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	159051 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 159051 pcs

Reference Price (In US Dollars)

2970 pcs: $0.19

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.19

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA3136.211HL

Part Number	PA3136.211HL	Manufacturer	Pulse Electronics Corporation
Description	FIXED INDUCT 210NH 50A 0.23 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	159051 pcs	Data sheet	PA3136.211HL.pdf
Type	-	Tolerance	±15%
Supplier Device Package	-	Size / Dimension	0.543" L x 0.315" W (13.80mm x 8.00mm)
Shielding	Unshielded	Series	PA3136.XXXHL
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Nonstandard
Other Names	553-2955	Operating Temperature	-40°C ~ 130°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	210nH	Height - Seated (Max)	0.157" (4.00mm)
Frequency - Self Resonant	-	Features	-
Detailed Description	210nH Unshielded Inductor 50A 0.23 mOhm Nonstandard	DC Resistance (DCR)	0.23 mOhm
Current Rating	50A	Current - Saturation	25A
