PA2517NL

Pulse Electronics Corporation

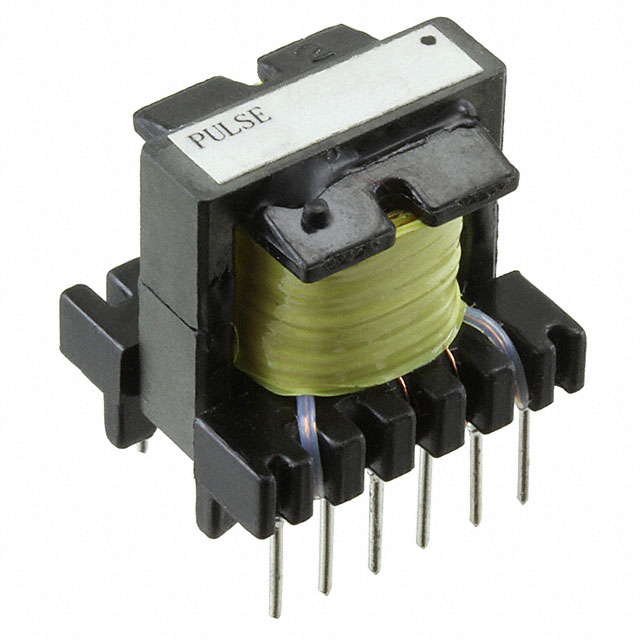

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA2517NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1.2MH
Datasheets:	PA2517NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35529 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35529 pcs

Reference Price (In US Dollars)

1 pcs: $0.986

10 pcs: $0.789

40 pcs: $0.641

80 pcs: $0.625

120 pcs: $0.608

280 pcs: $0.592

520 pcs: $0.587

1000 pcs: $0.519

5000 pcs: $0.477

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.986

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA2517NL

Part Number	PA2517NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1.2MH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35529 pcs	Data sheet	PA2517NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	-
Transformer Type	-	Size / Dimension	0.717" L x 0.630" W (18.20mm x 16.00mm)
Series	-	Other Names	553-2934
Operating Temperature	-40°C ~ 130°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	1.2mH
Height - Seated (Max)	0.709" (18.00mm)	Energy Time (E.T.)	-
