PA1297NL

Pulse Electronics Corporation

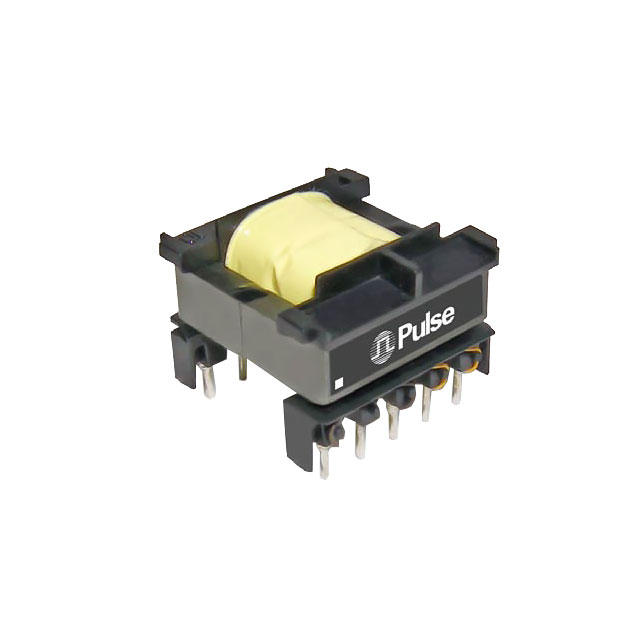

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA1297NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 380UH
Datasheets:	PA1297NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17587 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17587 pcs

Reference Price (In US Dollars)

1 pcs: $2.041

10 pcs: $1.551

35 pcs: $1.51

70 pcs: $1.388

105 pcs: $1.306

280 pcs: $1.265

525 pcs: $1.225

1015 pcs: $1.184

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.041

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA1297NL

Part Number	PA1297NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 380UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17587 pcs	Data sheet	PA1297NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	-
Transformer Type	-	Size / Dimension	1.100" L x 1.150" W (27.94mm x 29.21mm)
Series	-	Packaging	Tray
Other Names	553-2917	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	380µH	Height - Seated (Max)	0.820" (20.82mm)
Energy Time (E.T.)	-
